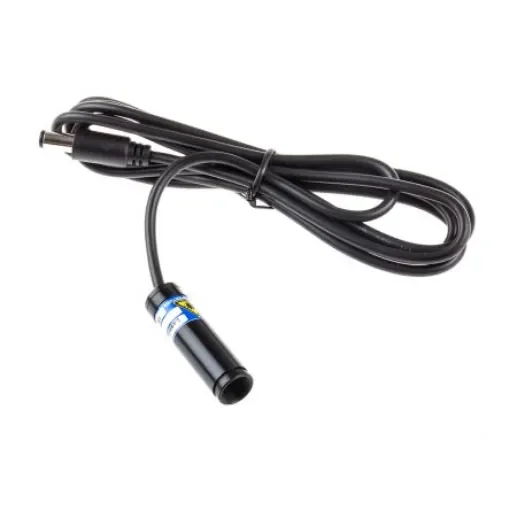

LaserLyte-Flex-635-5 Laser Module, 635nm 5mW, Continuous Wave Dot pattern

Laser Type = Continuous Wave
Laser Colour = Red
Emission Pattern = Dot
Laser Wavelength = 635nm
Optical Output Power = 5mW
Laser Class = 3R
Dimensions = 11 (Dia.) x 42 mm, 15 (Dia.) x 37 mm
Application = Alignment
Diameter = 11mm
Length = 37 mm, 42 mm
Series = LaserLyte-Flex

These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye. 110 – 240Vdc Power Supply: ; 697-3591 697-3591. Laserlyte Flex. This laser is a brilliant a unique laser. From ‘Global Laser ‘, it boasts a brilliant interchangeable laser system. The system has a range of projections which convert the base dot laser into a line, cross or a line with a dot. It is also features a ‘plug-and-play ‘ feature when purchased with the power supply. ( ; 697-3591 697-3591 ). The laser ‘s colour is a red for easy visibility. The unique laser can be used in a variety of applications. You can use it on your home machinery for precise accuracy, production lines for alignment, cutting guidance, straight edge guidance, positing and screen printing.
