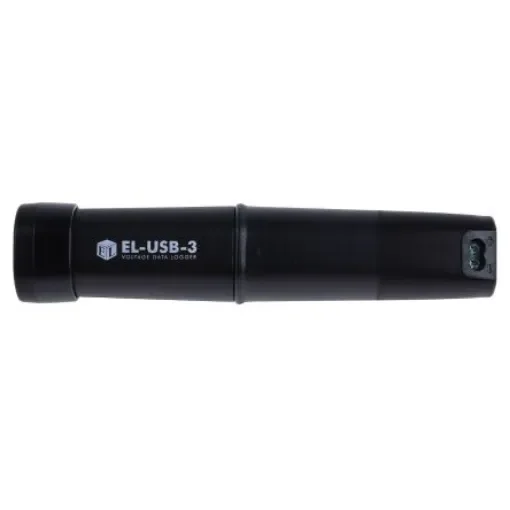

Lascar EL-USB-3 Voltage Data Logger, USB, 1 Input Channel(s)

Number of Input Channels = 1
Measurement Parameters = Voltage
Interface Type = USB
Data Logger Type = Voltage
Maximum Voltage Measurement = 30V dc
Power Source = Battery
Minimum Operating Temperature = -35°C
Maximum Operating Temperature = +80°C
Battery Life = 3 Yearsmm

Lascar EL-USB-3 Data LoggerThe standalone EL-USB-3 data logger from Lascar measures and stores more than 32,000 voltage readings from power supplies, sensors and other sources over a 0 to 30V d.c. range at a resolution of 50 mV d.c. Users can easily set up their logger and view downloaded data by simply plugging their unit into a PCs USB port. Using the free EasyLog software available to download, data can be graphed, printed and exported to other applications for detailed analysis. Features and Benefits 0 to 30V d.c. measurement range Stores over 32,000 readings Logging rates between 1 second and 12 hours Connection via two screw terminals Immediate and delayed logging start User-programmable alarm thresholds Status indication via red and green LEDs EasyLog Software available as a free downloadApplicationsOutside Environmental Data Facilities Management
