Lascar EL-SGD 43-ATP Temperature Data Logger, USB, 4 Input Channel(s)

Number of Input Channels = 4
Measurement Parameters = Temperature
Interface Type = USB
Data Logger Type = Temperature
Maximum Temperature Measurement = +125 °C
Power Source = Mains, USB
Best Temperature Measurement Accuracy = ±0.5°C
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +40°C
Display Type = Capacitive Touch Display
Temperature Measurement Resolution = 0.01°C

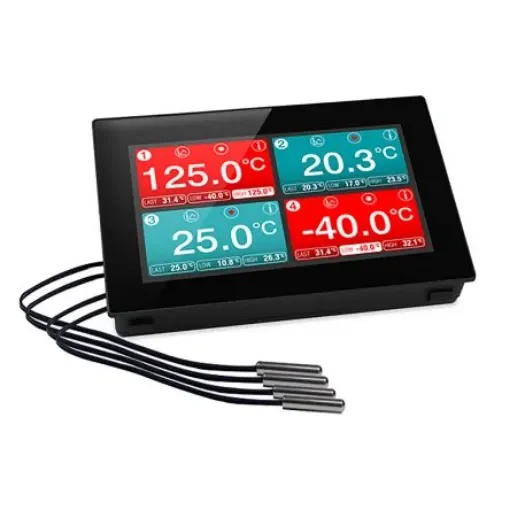

4.3 inch PanelPilotACE display with mounting kit (SGD 43-A) Four-channel thermistor add-on board (S43-TP) 4 x 1 m Thermistor probe with 3.5 mm plug (EL-PROBE2-1.0M-TP) Mini USB cable (CABLE USB A-MF). EasyLog EL-SGD 43-ATP Four Channel Touch Screen Temperature Data Logger, PanelPilot ACE. EL-SGD 43-ATP is a four channel temperature data logger based on the PanelPilotACE platform. The data logger includes a 4.3 panel-mounted display with capacitive touch screen, a four-channel thermistor temperature board and compatible temperature probes. The user interface contains an advanced logging application which shows real-time readings for up to 4 temperature channels, live trend graphs and access to suite of real-time data analysis information. Features and Benefits. Can store up to 100000 readings per channel at sample rates from 5 s up to 12 hrs Data can be downloaded via USB using Lascar ‘s free Device Utility Software at www.lascarelectronics.com/software/panelpilotace For advanced users, the interface can be customised using Lascar ‘s free drag-and-drop PanelPilotACE Design Studio software
