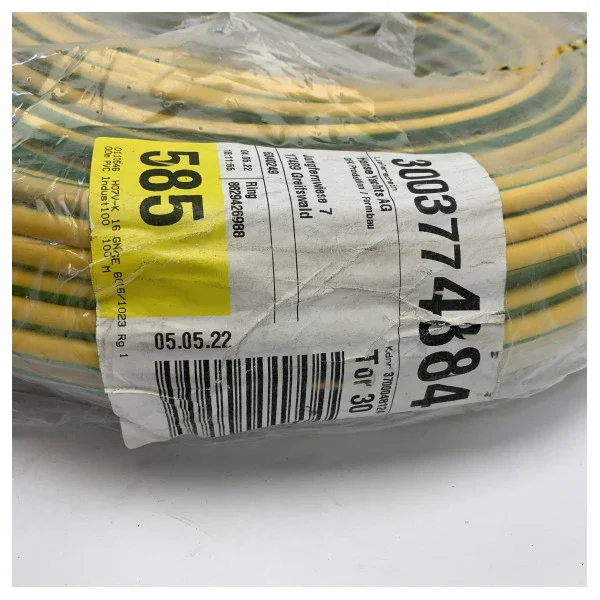

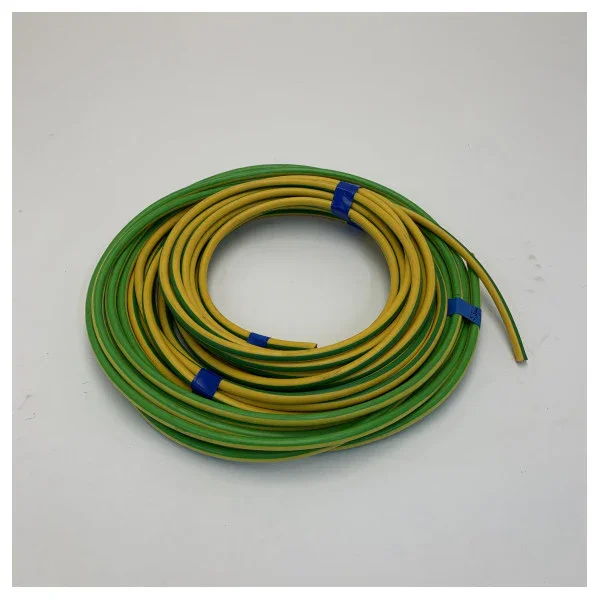

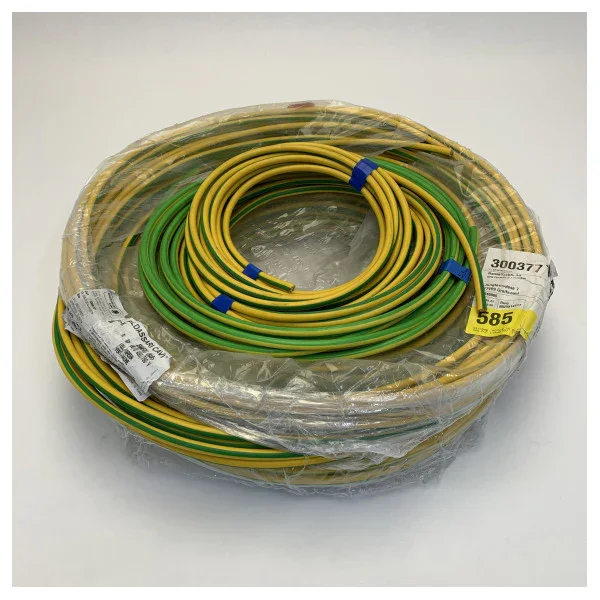

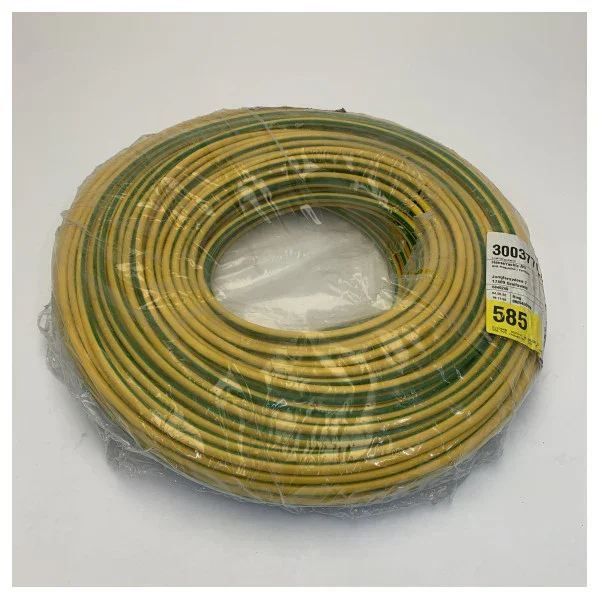

Lapp H07V-K 16mm2 Earthing Cable per Meter Yellow/Green: Reliable Earthing for Your Installation
If you are looking for a high-quality and reliable cable for the earthing of your electrical installations, then the Lapp H07V-K 16mm2 Earthing Cable is the perfect choice. This flexible conductor wire is designed to meet the strictest safety requirements and offers excellent conductivity and durability.
This cable is sold per meter, allowing you to order exactly the length you need, which helps prevent waste and manage your project costs. It is an essential component for ensuring safety in domestic, commercial, and industrial environments.
Key Features and Benefits
- Top Quality Material: Manufactured by Lapp, a leading name in the cable industry, ensuring reliability and long lifespan.

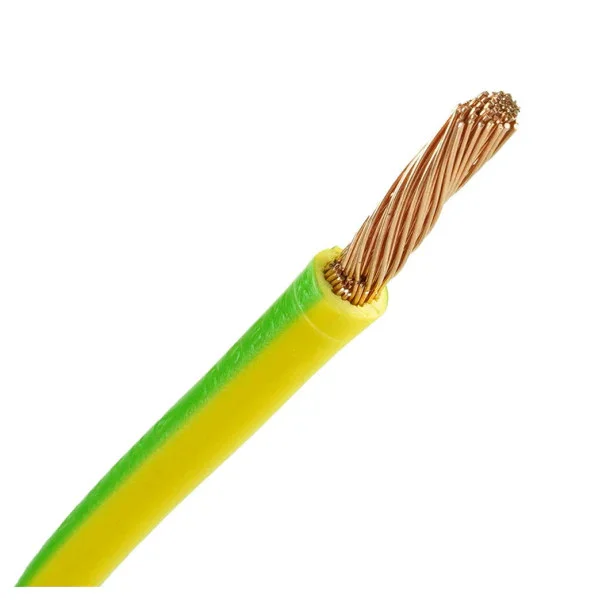

- Flexible Construction (H07V-K): The H07V-K designation indicates a fine-stranded, flexible copper conductor. This makes the cable easy to install, even in tight spaces or at bends, ideal for use in switch cabinets, distribution boards, and conduits.
- Clear Colour Coding (Yellow/Green): The yellow/green insulation colour is the international standard for earth wires (PE), ensuring quick and safe identification during installation and inspection.
- Safety First: The cable is designed for a nominal voltage of 450/750 V and is suitable for permanent installation in protected conduits or in lighting fixtures.
Specifications
The Lapp H07V-K 16mm2 Earthing Cable has the following technical specifications, which guarantee optimal performance:
- Type: H07V-K
- Nominal Cross-section: 16 mm²
- Conductor Material: Copper (fine-stranded)
- Insulation Material: PVC (Polyvinyl Chloride)
- Colour of Sheath/Insulation: Yellow/Green
- Nominal Voltage (Uo/U): 450/750 V
- Permissible Operating Temperature: Maximum +70 degrees Celsius (in the conductor)
- Number of Cores: Single-core (single-stranded)
- Sales Unit: Per meter
Order your Lapp H07V-K 16mm2 Earthing Cable today and ensure a safe and compliant earthing of your electrical systems.
