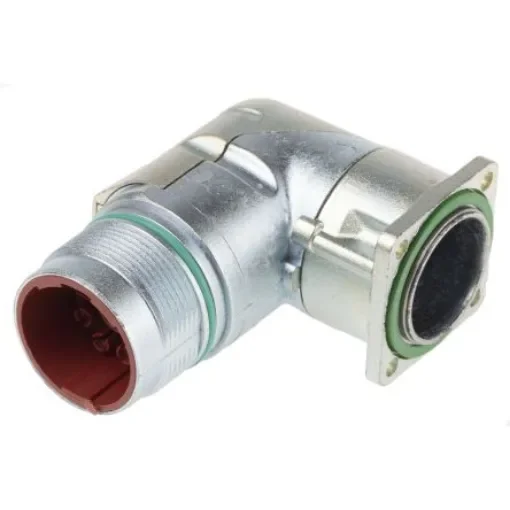

Lapp Circular Connector, 8 Contacts, Panel Mount, Plug, Male, IP65, EPIC Series - 24420056

EPIC® CIRCON LS1 A3. From Lapp, the EPIC POWER LS1 connector has an EMC-optimised design, and is ideal for use with electric motors. Circular Connectors are designed to DIN specification EN61984 and have a standard M23 threaded connection housing. The right angle connector has a space saving design, and is designed to be used in the field. With a robust nickel plated brass housing, the connector has excellent mechanical resistance, and boasts a high level of environmental sealing. It also features resistance from corrosion and chemicals, and maximum vibration protection. The connector is protected against electromagnetic interference signals. Features and Benefits • EMC Protection • Vibration Protection • Corrosion Resistance • Chemical Resistance • Mechanical Resistance • IP65 Protection • Operating Temperature -25°C up to +125°C Applications This connector is well suited for any environment where interference signals are a concern. Their vibration resistance also means they are suitable for use in heavy machinery environments. • Plant engineering • Wind Energy • Petrochemical Industry Environment This EPIC POWER connector is sealed to IP65, which means it has excellent protection against dust and particle ingress, and is protected against water projected from a nozzle. This means it is suitable for use in harsh industrial environments. Panel mount base, angled, rotatable For male contacts crimp (included) Housing with assembled insulation body
