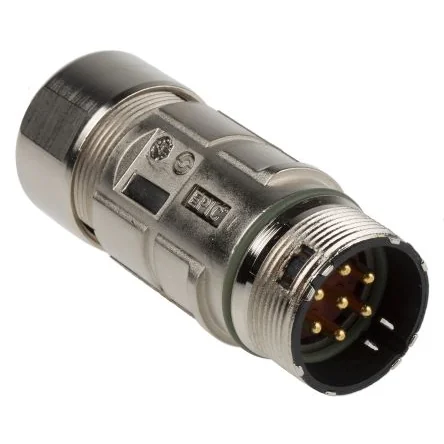

Lapp Circular Connector, 7 Contacts, Cable Mount, M23 Connector, Plug, Male, IP68, EPIC CIRCON Series - 44420040 + 73002756

Number of Contacts = 7
Connector Size = M23
Plug/Socket = Plug
Contact Gender = Male
Termination Method = Solder
IP Rating = IP68
Series = EPIC CIRCON
Voltage Rating = 150.0 V
Mating Type = Keyed
Minimum Operating Temperature = -25°C

Lapp CIRCON Cable Coupler. From Lapp, the CIRCON M23 series of in-line connectors are a rugged and compact solution to industrial connector applications. With a standard M23 threaded housing for easy and assured mating, the connectors also form a tight seal when mated to prevent environmental ingress. Coupled with their nickel-plated zinc shell, which offers excellent mechanical protection, the CIRCON M23 series of in-line couplers are durable and reliable. The easy to assemble in-line connectors also feature an indented area for use with colour coding rings, which are an ideal way to identify connectors for quick and easy cable management. These cable mounted connectors also include an EMC shield ring which provides 360 degree shielding, as well as a cable gland which prevents wear and tear on the cable assembly. Features and Benefits Designed to DIN Specification EN61984 Protection Class IP68 Resistant to Vibration, Corrosion and EMI Contact resistance ;4mO Quick and Easy Assembly Easy to Identify Marker System Operating Temperature Range -25°C to +125°C Environment These robust connectors seal to IP68, which means they are highly resistant to dust ingress and resistant to water even when temporarily submerged. As such, they are suitable for use in harsh indoor environments, and even for some outdoor applications. The connector is also designed to be resistant to damage by vibration, which makes them suitable for use with heavy industrial machinery. Applications These CIRCON M23 in-line connector couplers are for use with multicore cables in a variety of industrial control signal applications, and for servo drive encoder feedback. Robotics Control and Automation Printing Mating Connectors CIRCON M23 in-line couplers mate with corresponding cable mounted connectors. 219-475 219-475 is a 7 way cable mounted socket 219-481 219-481 is an 8+1 way cable mounted socket 218-905 218-905 is a 12 way cable mounted socket 218-955 218-955 is a 17 way cable mounted socket 218-911 218-911 is a 7 way cable mounted plug 218-927 218-927 is an 8+1 way cable mounted plug 218-933 218-933 is a 12 way cable mounted plug 218-949 218-949 is a 17 way cable mounted plug
