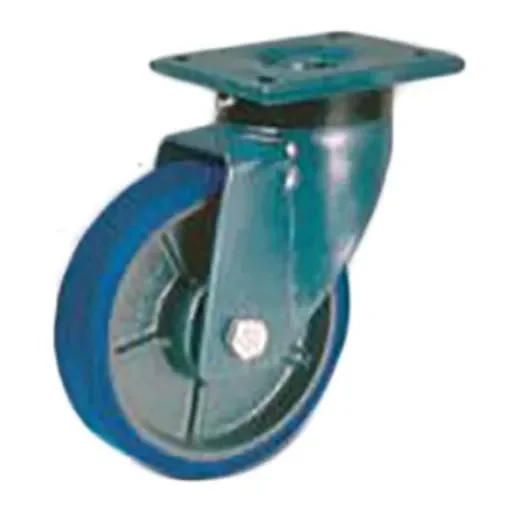

LAG Swivel Castor Wheel, 700kg Capacity, 100mm Wheel - 37505

Wheel Diameter = 100mm
Load Capacity = 700kg
Mounting Type = Bolt Hole
Includes Brake = No
Overall Height = 160mm
Wheel Width = 40mm
Rotation = Swivel
Tyre Material = Polyurethane
Fixing Centres = 80 x 105mm
Fixing Plate Dimensions = 110 x 135mm
Number of Fixing Holes = 4
Fixing Hole Size = 10mm
Weight Class = Heavy Duty
Hub Material = Cast Iron

Polyurethane Tyre, Cast Iron Hub, Extra Heavy Duty, E70 Series, ZS Series Wheel. The ZS series of heavy-duty wheels and castors by LAG are used to move heavy loads. Therefore, they have a much sturdier design and are under certain circumstances suitable for higher travelling speeds. These castors ensure safe and permanent mobility, for example, for storage and industrial trucks as well as for special assembly and transport systems. Features and Benefits. • Cast soft polyurethane coating, hardness 87±3 Shore A • Core in cast iron painted • High load capacity, smooth and noiseless running; high resistance to abrasion, wear and tear, oils and greases; shock absorbing • Temperature range: -30°C / +80°C (-22°F / +176°F) • Hub with: shielded precision ball bearings • Heavy gauge top plate • Thermoplastic dust protection ring • Swivel fork and dust cover in pressed steel sheet • Tapered roller bearing
