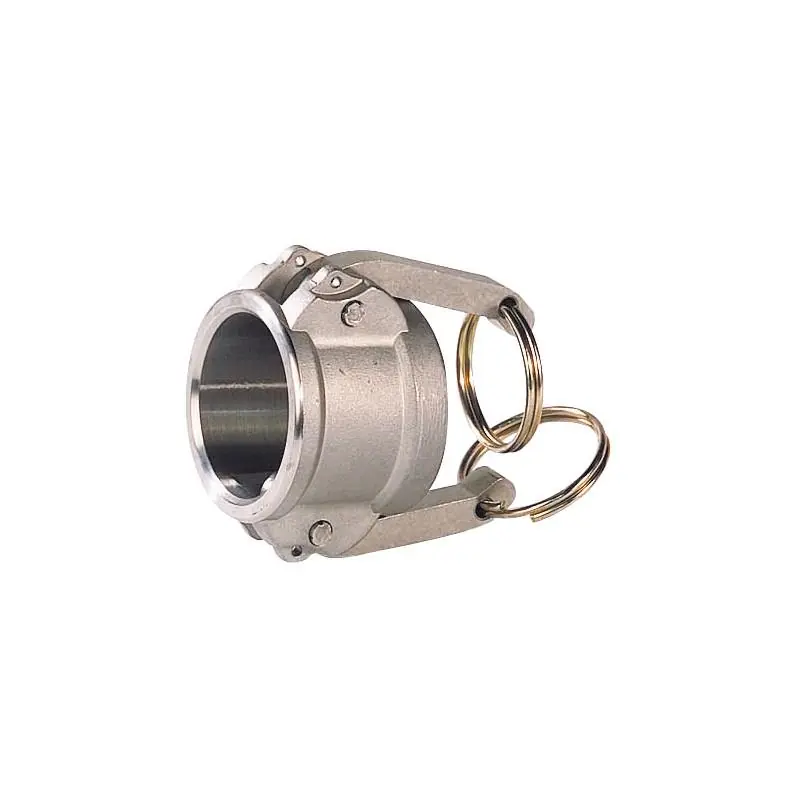

Key Features:
- Designed for quick and secure connections and disconnections of hose lines.
- Made of corrosion-resistant 316 stainless steel for enhanced durability.
- Equipped with Buna-N gaskets to ensure a tight seal.
- Compatible with standard camlock couplings, ensuring versatility.
Technical Specifications:
- Temperature Range: -40°F to 400°F (-40°C to 204°C).
- Maximum Pressure: Varies by size; for example, 2" size has a maximum pressure of 200 psi at 72°F (22°C).
- Thread Type: Female NPT (National Pipe Thread).
Materials:
- Body and Cam: 316 Stainless Steel.
- Gasket: Buna-N (Nitrile) Rubber.
Dimensions:
- 2" Size:
Plug Outer Diameter: 2 1/2 inches (63.5 mm).
Compatible Pipe Size: 1 1/2 inches (38.1 mm).
Other sizes available include 1/2", 3/4", 1", 1 1/4", 1 1/2", 2 1/2", 3", 4", 5", and 6".
Compatibility Information:
- Compatible with standard camlock couplings from manufacturers such as Andrews, Dixon, Ever-Tite, and PT Coupling.
Additional Details:
- Not suitable for use with compressed air or gas.
- Ensure all pressure is relieved before disconnecting the couplings.
