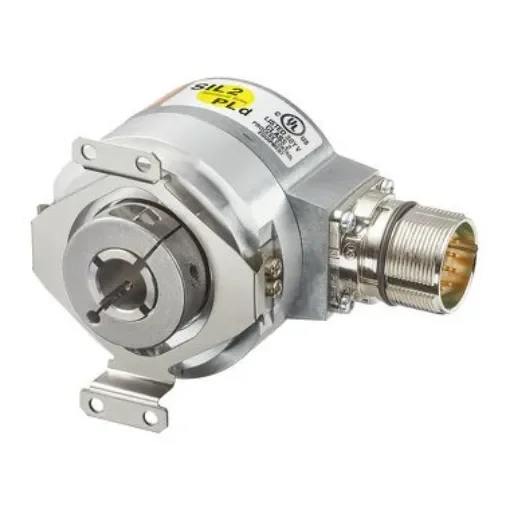

Kübler SIL 2 Series Incremental Incremental Encoder, 2048 ppr, Hollow Type, 12mm Shaft - 8.5834FS2.B424.2048
Kübler SIL 2 Incremental Encoder with 2048 ppr and 12mm hollow shaft for safety-related applications.
Manufacturer part number: 8.5834FS2.B424.2048
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Encoder Technology = Incremental
Series = SIL 2
Maximum Revolutions = 9000rpm
Shaft Type = Hollow
Shaft Diameter = 12mm
IP Rating = IP65
Overall Height = 87.5mm
Overall Width = 68mm
Overall Depth = 56mm
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +90°C
Switching Frequency = 400 kHz
Sendix SIL 5814FS2 / 5834FS2 (Shaft / Hollow Shaft). The incremental encoders 5814FS2 and 5834FS2 of the Sendix SIL family are suited for use in safety-related applications, specially in the field of safe drive technology. Safety-Lock™ Design High rotational speed Shaft and hollow shaft versions High shaft load capacity Shock and vibration resistant Magnetic field proof Optical sensor Incremental SinCos tracks Reverse polarity protection
