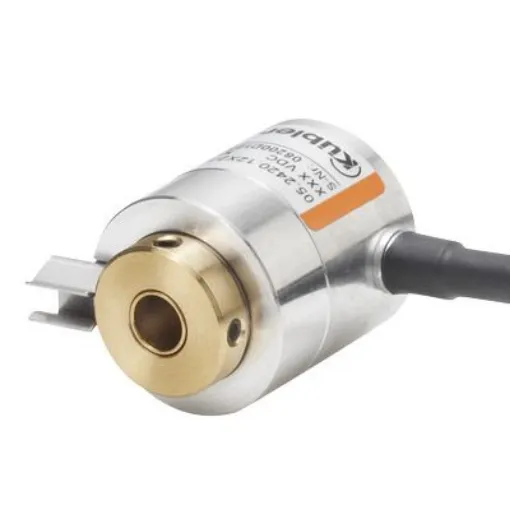

Kübler 2420 Series Incremental Encoder, 1024 ppr, Push Pull Signal, Hollow Type, 6mm Shaft - 05.2420.1242.1024

Series = 2420
Overall Width = 24mm

Kubler Incremental EncoderThe Kubler incremental encoder has an electrical rating of 8VDC to 30VDC with a current rating 50mA and the switching frequency is 160 kHz. This incremental miniature encoder uses optical sensor technology that offers a resolution of up to 1024 pulses per revolution. The diameter of this encoder is 24mm is ideal for use where space is tight.Features and Benefits• Cable outlet boasts high degree of strain relief thanks to multiple clamping • Ideally suited for use in small devices • Mounting type is flange mount • Operating temperature ranges between -20°C and 85°C • Output signal type is push-pull • Robust bearing construction • Shaft type is hollow • Short-circuit proof outputsApplications• Monitoring or controlling motion parameters such as speed, rate, direction, distance or positionCertifications• IP50 rated • IP64 rated • IP65 rated
