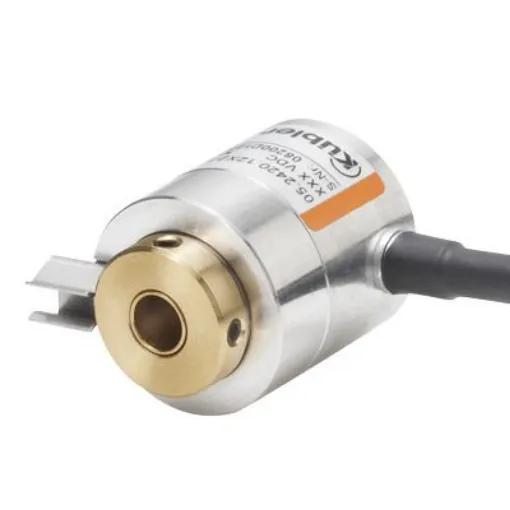

Kübler 2420 Series Incremental Encoder, 1000 ppr, Push Pull Signal, Hollow Type, 6mm Shaft - 05.2420.1242.1000
Compact incremental encoder with 1000 PPR resolution, ideal for precise motion control.
Manufacturer part number: 05.2420.1242.1000
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Encoder Technology = Incremental
Series = 2420
Shaft Type = Hollow
Overall Height = 30.5mm
Overall Width = 24mm
Maximum Operating Temperature = +85°C
Switching Frequency = 160 kHz
Kubler Incremental EncoderThe Kubler 2420 series incremental encoder has an electrical rating of 8VDC to 30VDC, 50mA and the switching frequency of 160 kHz. This incremental miniature encoder uses optical sensor technology that offers a resolution of up to 1000 pulses per revolution. The encoder diameter is 24mm ideal for use where space is tight.Features and Benefits• Cable outlet boasts high degree of strain relief • Ideally suited for use in small devices • Mounting type is flange mount • Operating temperature ranges between -20°C and 85°C • Output signal type is push-pull • Robust bearing construction • Shaft type is hollow • Short-circuit proof outputsApplications• Monitoring or controlling motion parameters such as speed, rate, direction, distance or positionCertifications• IP50 rated • IP64 rated • IP65 rated
