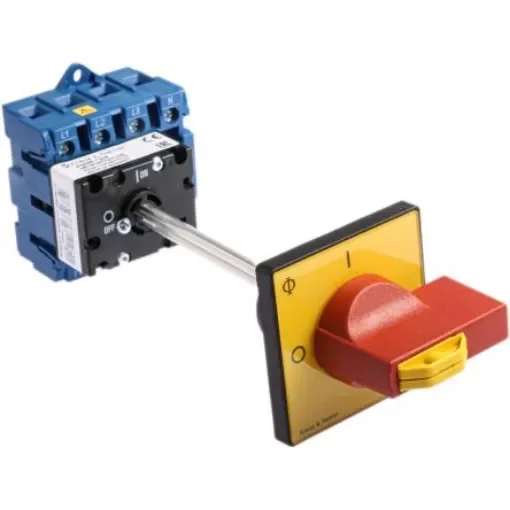

Kraus & Naimer 4P Pole Isolator Switch - 63A Maximum Current, 22kW Power Rating, IP65 - KG64B.T204/GBA302.VE
Reliable 4P isolator switch with 63A capacity and IP65 rating for optimal performance.
Manufacturer part number: KG64B.T204/GBA302.VE
GTIN: 9004257171972
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Number of Poles = 4P
Maximum Current = 63A
IP Rating = IP65
Power Rating = 22kW
Voltage Rating = 690V ac
Electrical Phase = 3
Accepts Padlocks = Yes
Auxiliary Contacts Available = Yes
Length = 66mm
Width = 64mm
Depth = 61mm
Terminal Type = Wire Lead°C
BS EN 60947-3, EN 60947-3, IEC 60947-3, VDE 0660, EN 60204-01. Stated motor rating, Util. Cat. AC23A/AC3, is for 3 phase, 380/440V supply. Single Hole Mounting Operator 3 ; 4 Pole Switch-Disconnectors, IP65. Single hole mounting Handle padlockable (x4) in "OFF" position Adjustable metal operating shaft, length 120mm Door interlocked to prevent opening of panel door while switch is in the 'ON' postion Fingerproof terminal on 25 to 63A switches Live terminal cover provided for 80A ; 100A switches Nominal voltage: 690V Side mounting auxiliary contacts can be added, see typically stock no. ; 319-691 319-691 Base mounting via DIN rail or screw to back of panel
