Key Features:

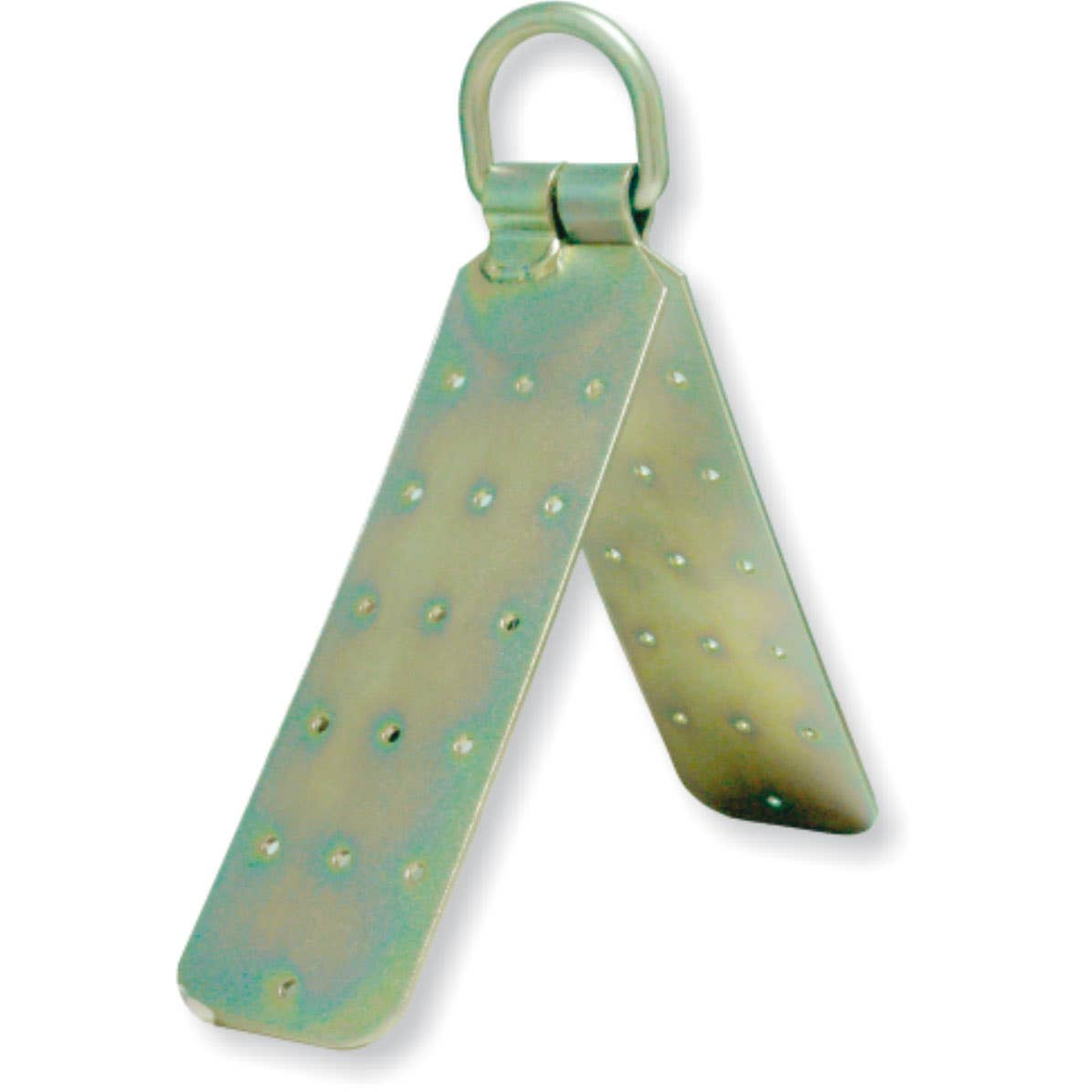

- Articulated side panels can be fixed flat or in a V shape on wooden beams.
- Designed for beams with a minimum resistance of 10 kN (80 x 80 mm).
- Installation requires ringed nails.
- Panels made of galvanized steel and forged D.
- Static resistance > 12 kN in the two main directions of use.
- Breaking strength: 23 kN.
- CE EN 795 Class A certified.
Technical Specifications:
- Static resistance: > 12 kN in two main directions.
- Breaking strength: 23 kN.
- CE EN 795 Class A certified.
Materials:
- Panels: Galvanized steel.
- Forged D: Steel.
Dimensions:
- Beam compatibility: 80 x 80 mm.
Compatibility Information:
- Suitable for use with beams having a minimum resistance of 10 kN (80 x 80 mm).
- Must be used as part of a fall arrest system as defined in the product data sheet (EN 363) to ensure that the energy developed during fall arrest is no greater than 6 kN.
Additional Details:
- Installation requires ringed nails.
- Panels made of galvanized steel and forged D.
- Weight: 1.05 kg.
- CE EN 795 Class A certified.
