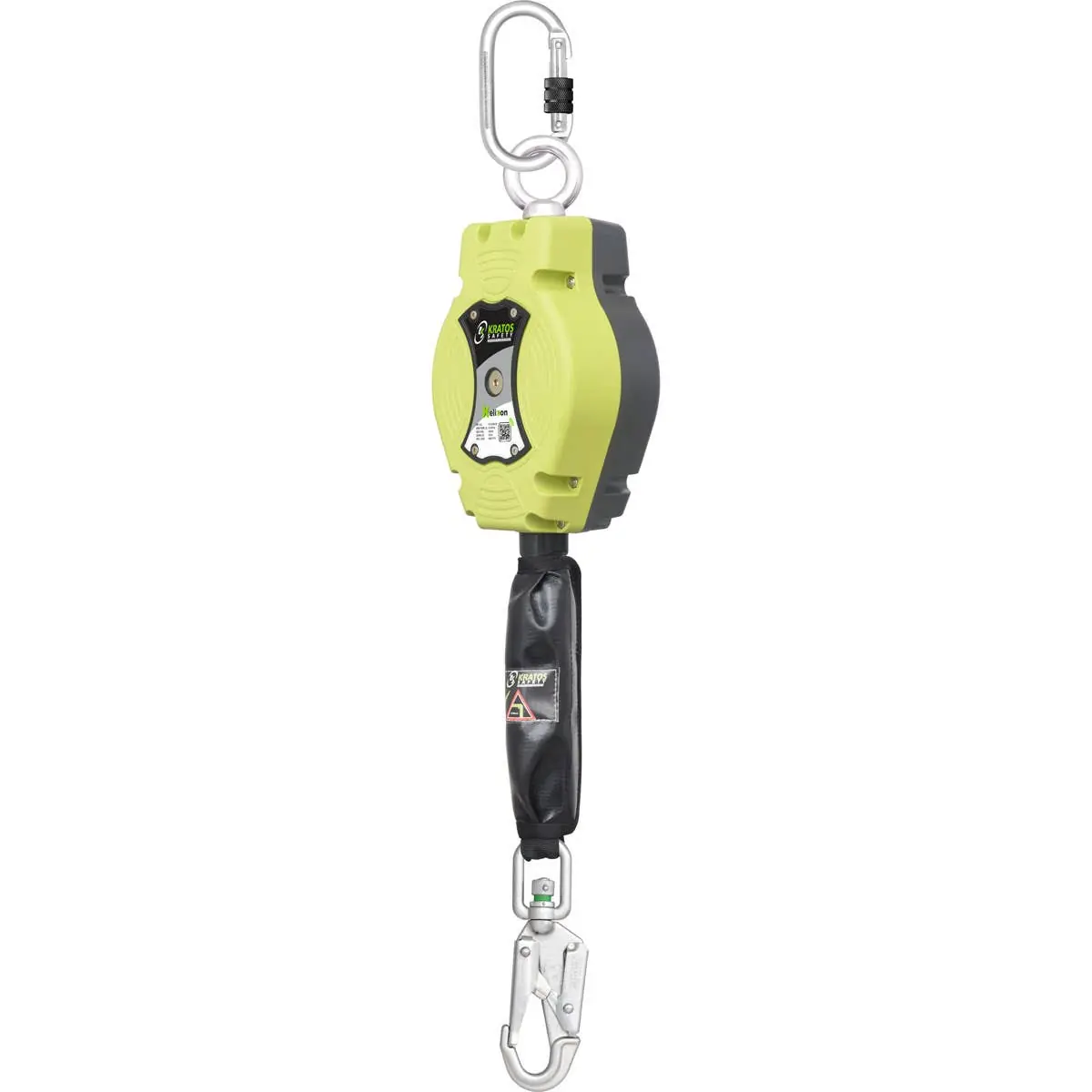

The HELIXON-S Webbing, Retractable Fall Arrester 6 m by KRATOS SAFETY is a high-quality fall protection device designed for both vertical and horizontal applications. It features a robust polymer casing equipped with a carrying handle and a removable window for easy access to the internal mechanism, allowing for inspection without fully opening the casing.
- High-Resistance Polymer Casing: Ensures durability and longevity.
- Carrying Handle: Facilitates easy transport and handling.
- Removable Inspection Window: Allows for quick internal mechanism checks without complete disassembly.
- 25 mm Polyester Webbing: Provides strength and flexibility.
- Connector with Load Indicator (FA 50 203 20): Enhances safety by indicating load status.
- External Energy Absorber: Reduces impact forces during a fall.
- Integrated Braking System: Limits fall arrest force to less than 6 kN.
- Swivel and Connector (FA 50 101 17): Allows for smooth movement and connection to anchorage points.
Technical Specifications:
- Compliance: EN 360:2002, VG11.060
- Minimum Breaking Strength: > 15 kN
- Maximum User Weight: 140 kg for both vertical and horizontal use
- Weight: 3.21 kg
Materials:
- Casing: High-resistance polymer
- Webbing: 25 mm polyester
- Connectors: Metal components with load indicator
Dimensions:
Compatibility Information:
- Suitable for users up to 140 kg in both vertical and horizontal applications
