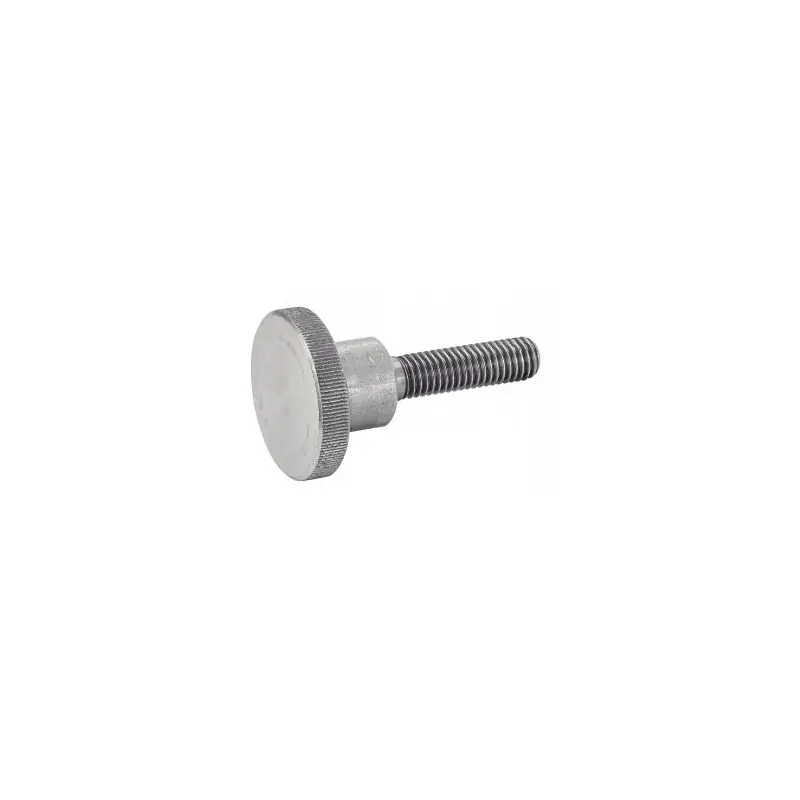

The Knurled Stainless Steel A1 Screw (DIN 464) is a high-quality fastener designed for applications requiring manual tightening and loosening without the need for tools. Its knurled head provides a secure grip, facilitating easy adjustment.
- Knurled Head: Offers a textured surface for enhanced grip during manual operation.
- Stainless Steel A1 Material: Provides resistance to corrosion and durability, suitable for various environments.
- DIN 464 Standard Compliance: Ensures compatibility and interchangeability with other components adhering to the same standard.
Technical Specifications
- Thread Sizes (d): Available in M3, M4, M5, M6, M8, and M10.
- Thread Pitch: Varies by size; for example, M3 has a 0.5 mm pitch, M4 has a 0.7 mm pitch, and M6 has a 1.0 mm pitch.
- Head Diameter (dk): Dimensions range from approximately 12.35 mm for M3 to 36.50 mm for M10.
- Head Height (k): Varies from about 2.5 mm for M3 to 8.0 mm for M10.
- Shank Diameter (ds): Approximately 6.00 mm for M3 to 20.00 mm for M10.
- Overall Length (h): Available in lengths such as 7.5 mm for M3 to 23.0 mm for M10.
- Thread Length (l): Options include 8 mm, 10 mm, 16 mm, and 20 mm, depending on the thread size.
Materials
- Stainless Steel A1: Offers resistance to corrosion and is suitable for various environments.
Dimensions
- Thread Sizes (d): M3, M4, M5, M6, M8, M10.
- Head Diameter (dk): 12.35–36.50 mm, depending on thread size.
- Head Height (k): 2.5–8.0 mm, depending on thread size.
- Shank Diameter (ds): 6.00–20.00 mm, depending on thread size.
- Overall Length (h): 7.5–23.0 mm, depending on thread size.
- Thread Length (l): 8–20 mm, depending on thread size.
Compatibility Information
These screws are designed to be compatible with other components adhering to the DIN 464 standard, ensuring interchangeability and ease of use in various applications.
