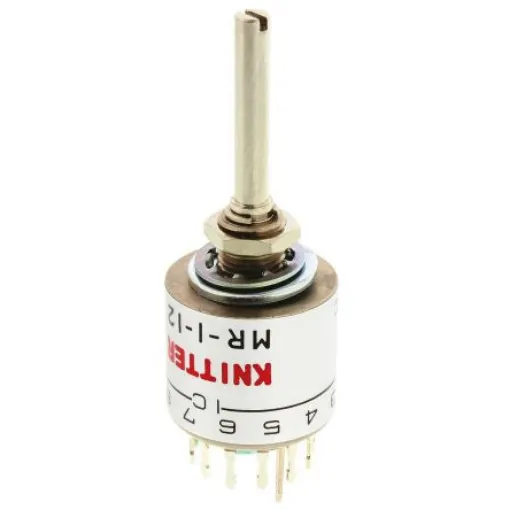

KNITTER-SWITCH, 12 Position SP12T Rotary Switch, 150 mA @ 24 V dc, Solder - MR 1-12
Compact 12 position rotary switch ideal for test and instrumentation applications.
Manufacturer part number: MR 1-12
GTIN: 5059045943099
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Contact Current Rating = 150 mA @ 24 V dc
Number of Switch Positions = 12
Number of Contacts = 1
Voltage Rating = 125 V ac, 24V dc
Diameter = 6.5mm
Dimensions = 6.5 x 40mm
Mounting Type = Panel Mount
Terminal Type = Solder
Application = Test and Instrumentation Switches
Maximum Operating Temperature = +110°C
Knitter Switch Miniature Rotary Switches - MR Series. Panel mount miniature rotary switches 1/4" mounting bush Nickel plated brass shaft Silver contacts Contact resistance ;10mO Insulation resistance >100MO at 500Vdc Dielectric strength 1000V 50Hz for 1 minute Non-shorting contact
