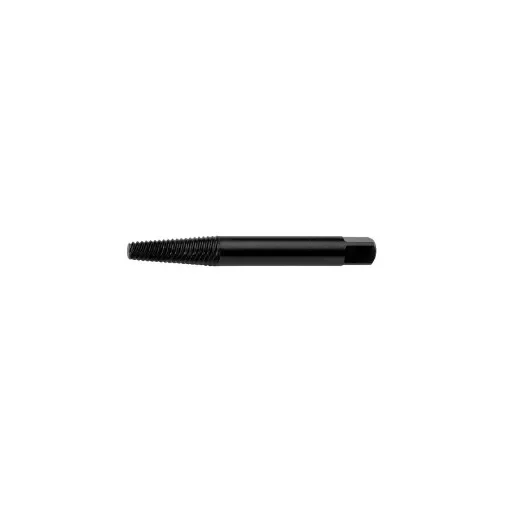

The Knipex Spiral Screw Extractor is a high-quality tool designed for the efficient removal of damaged or stripped screws and bolts without causing damage to the surrounding threads. Its unique spiral flute design ensures a secure grip and effective extraction.
- High-Strength Construction: Crafted from chrome vanadium steel, the extractor offers enhanced resistance to breakage and rounding, ensuring durability and longevity.
- Dual-Edged Engagement: The extractor features a non-slip, dual-edged design that provides a firm and secure hold on the damaged screw or bolt, facilitating efficient removal.
- Versatile Compatibility: Suitable for both right-hand and left-hand threads, the extractor can be turned in clockwise or counterclockwise directions, accommodating a wide range of applications.
- Hex Shank Design: Equipped with a unique hex shank, the extractor is compatible with all standard hex sockets, extensions, or box wrenches, preventing the issue of rounded corners during use.
- Surface Finish: The extractor has a burnished surface with polished cutting edges, reducing friction and enhancing performance.
Technical Specifications:
- Point Diameter: 1.75 mm
- Shank Diameter: 3.6 mm
- Length: 50 mm
- Weight: 3 g
- Minimum Compatible Screw Size: M3
- Maximum Compatible Screw Size: M6
- Minimum Reamer Diameter: 2.0 mm
- Maximum Reamer Diameter: 3.5 mm
Materials:
- Extractor Material: Chrome vanadium steel
Dimensions:
- Extractor Dimensions: 50 mm in length with a point diameter of 1.75 mm and a shank diameter of 3.6 mm
Compatibility Information:
- Screw Sizes: Compatible with screws ranging from M3 to M6
- Reamer Sizes: Requires reamer sizes between 2.0 mm and 3.5 mm
