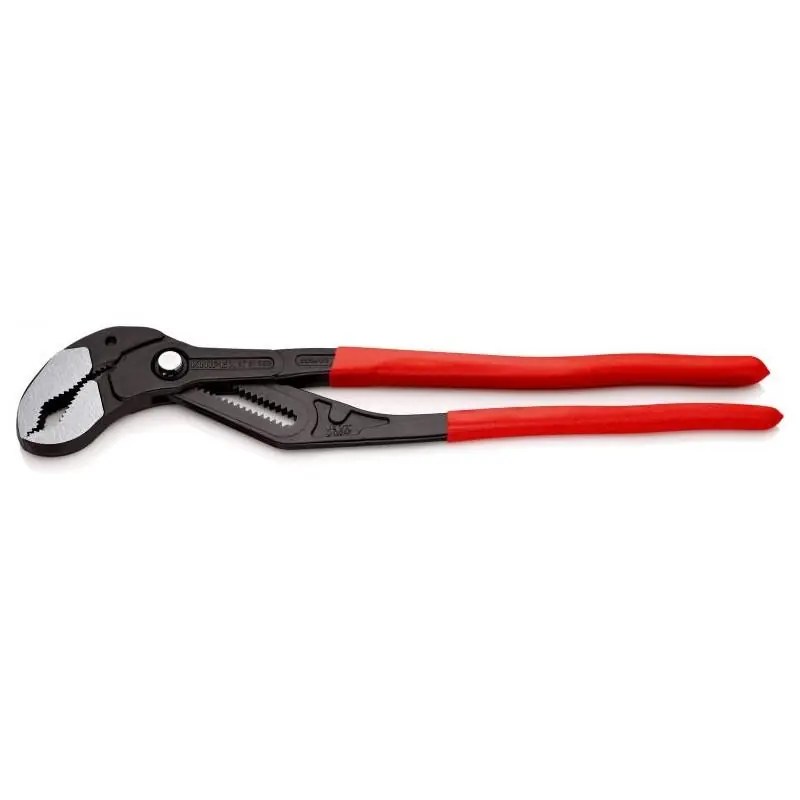

Key Features:
- Enhanced Gripping Capacity: Offers greater gripping capacity with significantly lower weight compared to traditional pipe wrenches.
- Quick Adjustment: Fast push-button adjustment directly on the workpiece, preventing unintentional slipping of the joint.
- Fine Adjustment: 27-fold (Cobra® XL) or 20-fold (Cobra® XXL) fine adjustment for optimal adaptation to various workpiece sizes and comfortable handle width.
- Self-Locking Mechanism: Self-clamping on pipes and nuts, ensuring no slipping on the workpiece and reducing hand force required.
- Hardened Teeth: Gripping surfaces with special hardened teeth, hardness approximately 61 HRC, providing high wear resistance and stable gripping.
- Box-Joint Design: High stability due to double guide, enhancing tool durability.
- Safety Features: Pinch guard to prevent operators' fingers from being pinched.
Technical Specifications:
- Cobra® XL (87 01 400):
- Length: 400 mm
- Weight: 1,190 g
- Adjustment Positions: 27
- Capacity for Pipes: Up to 90 mm (3 1/2 inches) in diameter
- Capacity for Nuts: Up to 95 mm
- Cobra® XXL (87 01 560):
- Length: 560 mm
- Weight: 2,780 g
- Adjustment Positions: 20
- Capacity for Pipes: Up to 115 mm (4 1/2 inches) in diameter
- Capacity for Nuts: Up to 120 mm
Materials:
- Pliers: Chrome vanadium electric steel, forged, oil-hardened
- Handles: Plastic-coated for enhanced grip and comfort
Dimensions:
- Cobra® XL (87 01 400): 400 x 75 x 22 mm
- Cobra® XXL (87 01 560): 560 x 103 x 29 mm
Compatibility Information: Suitable for gripping, turning, pulling, holding, and screwing pipes, nuts, and flat, round, and angular components.
