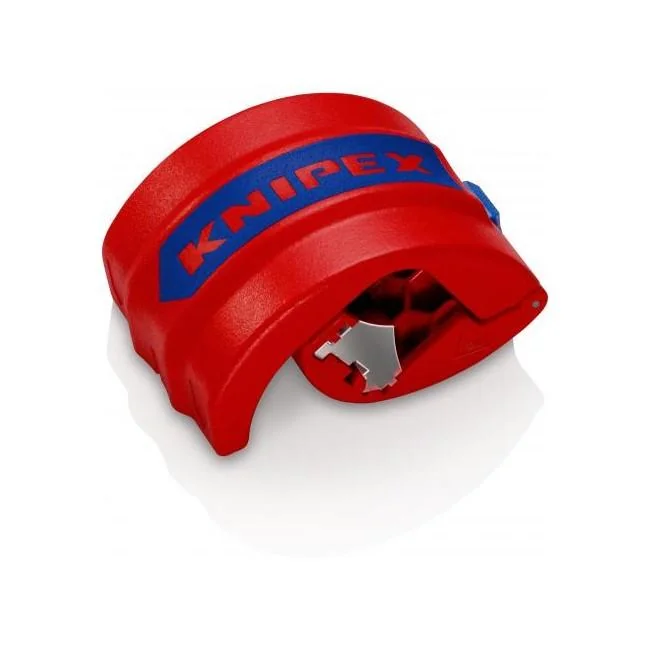

The KNIPEX BiX® Cutter is a versatile and compact tool designed for cutting plastic pipes and sealing sleeves efficiently and cleanly. Its ergonomic design ensures comfortable handling, making it ideal for both professional plumbers and electricians.
- Clean and Efficient Cutting: Cuts pipes quickly and cleanly without producing shavings, ensuring a smooth finish.
- Versatile Cutting Capabilities: Suitable for unreinforced plastic pipes (e.g., PVC, PVC-U, PE) and soft plastic pipes with foam cores, with diameters ranging from 20 to 50 mm and wall thicknesses up to 3.5 mm.
- Sealing Sleeve Functionality: Designed to cut sealing sleeves approximately 2-3 mm from the wall, adhering to standard-compliant practices.

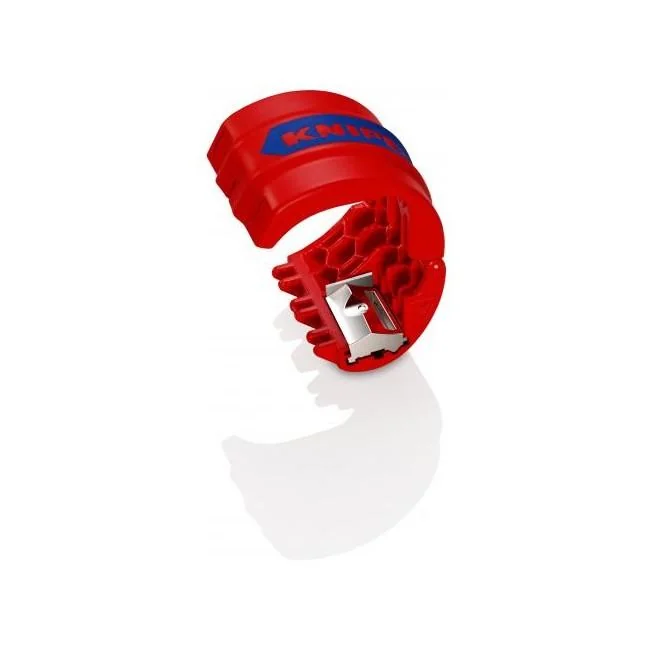

- Rotatable Blade Unit: Features a blade unit that can be rotated 180 degrees; when positioned centrally, it cuts pipes, and when positioned externally, it cuts sealing sleeves.
- Integrated Spare Blades: Comes with two spare blades integrated into the tool for convenience.
- Safety Mechanism: Equipped with a locking mechanism to ensure safe transport and storage.
Technical Specifications:
- Cutting Capacity for Plastic Pipes: 20 - 50 mm diameter, wall thickness up to 3.5 mm.
- Cutting Capacity for Sealing Sleeves: 20 - 50 mm diameter, cuts approximately 2-3 mm from the wall.
- Weight: 70 g
- Dimensions: 72 x 85 x 44 mm
- Material: Reinforced plastic housing with a die-cast zinc blade holder; blades made of special surgical stainless steel.
- Compliance: REACH compliant (does not contain SVHC); RoHS compliant (not applicable).
