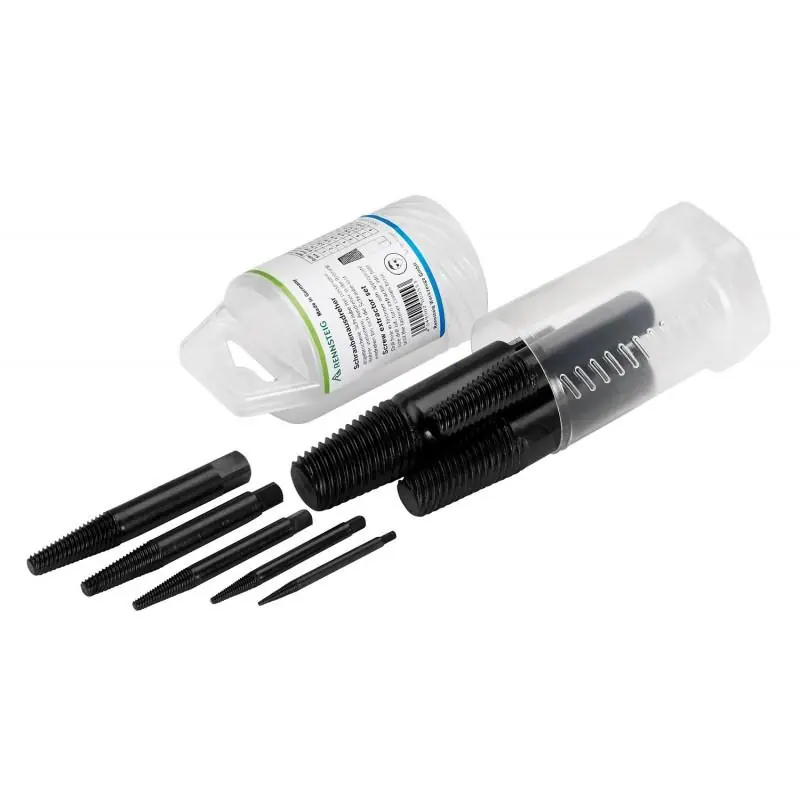

Key Features:
- Damage-Free Extraction: Designed for the safe removal of broken screws or threaded bolts from threaded holes without causing damage.
- Comprehensive Set: Includes 8 extractors suitable for screws ranging from M3 to M45.
- Right-Hand Threads Only: Intended exclusively for right-hand threaded fasteners.
- High-Quality Construction: Made from hardened CrV (Chrome Vanadium) steel with a zinc-phosphated surface finish for enhanced durability.
- Versatile Compatibility: Compatible with various materials; service life varies depending on the hardness of the mating material.
Technical Specifications:
| Size | Tip Diameter (mm) | Shank Diameter (mm) | Length (mm) | Suitable for Screws (M) | Reamer Diameter (mm) | Weight (g) |
|---|
| 1 | 1.75 | 3.6 | 50 | 3 to 6 | 2.0 to 3.5 | 3 |
| 2 | 2.20 | 5.0 | 57 | 6 to 8 | 3.0 to 4.5 | 7 |
| 3 | 3.30 | 6.5 | 64 | 8 to 11 | 4.0 to 6.0 | 13 |
| 4 | 4.75 | 8.8 | 71 | 11 to 14 | 6.0 to 8.5 | 28 |
| 5 | 6.35 | 11 | 78 | 14 to 18 | 7.0 to 11 | 48 |
| 6 | 9.50 | 15 | 85 | 18 to 24 | 11.0 to 14.5 | 96 |
| 7 | 12.70 | 19 | 92 | 24 to 33 | 14.5 to 19 | 165 |
| 8 | 17.50 | 24 | 100 | 33 to 45 | 20.0 to 23.5 | 296 |
Materials:
- Steel Type: Hardened CrV (Chrome Vanadium) steel
- Surface Finish: Zinc-phosphated
Compatibility Information:
- Thread Type: Right-hand threads only
- Screw Size Range: M3 to M45
