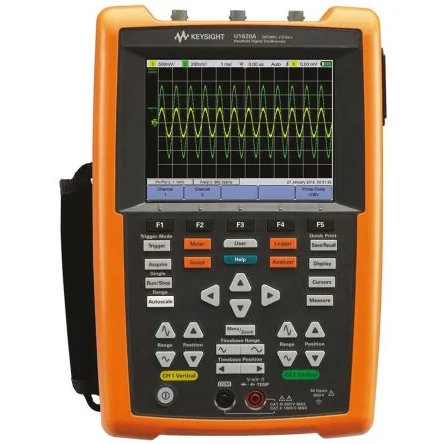

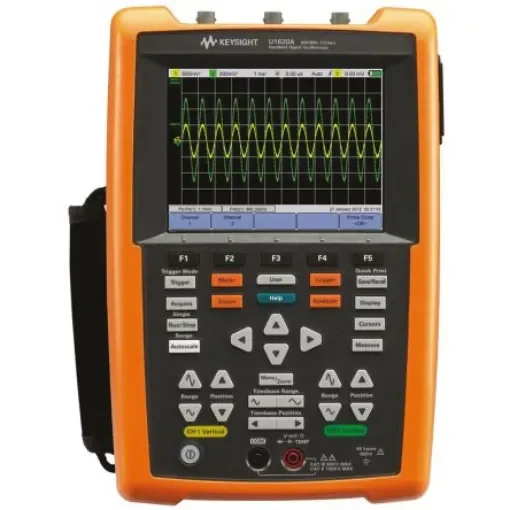

Keysight Technologies U1620A U1600 Series, 200MHz Handheld Oscilloscope, 2 Analogue Channels
The Keysight U1620A is a portable 200MHz oscilloscope with dual channels, perfect for on-the-go measurements.
Manufacturer part number: U1620A
Bandwidth = 200MHz
Number of Analogue Channels = 2
Oscilloscope Type = Handheld
Interface = CAN, LIN, USB
Sample Rate Random = 1 Gsps, 2 Gsps
Screen Size = 5.7in
Series = U1600
Record Length = 2M points/ch
Battery Type = Li-ionV
Quick start guide, power adapter, Li-Ion battery pack, USB cable, test lead, 10:1 probe (2 sets). 3. Keysight U1610A ; U1620A. Keysight U1610A ; U1620A are the world's first VGA display handheld oscilloscopes with safety isolated channels. These are 3-in-1 instruments: dual channel digital oscilloscope; single-channel 10000 count digital multimeter; data logger for DMM and scope measurements. High resolution, wide viewing angle, fast update rate 5.7in VGA TFT LCD display with 3 selectable viewing modes (indoor, outdoor, night vision) Channel-to-channel isolation, with CAT III 600 V safety ratings, for high power signal troubleshooting Memory depth and sampling rate enable capture of long, non-repeating signals, with excellent zooming capabilities on to selective glitches USB device and host IO connectivity Field changeable battery IP 41 ingress protection according to IEC 60529 Dimensions 183 (W) x 270 (H) x 65 (D) mm 9 languages help and user interface
