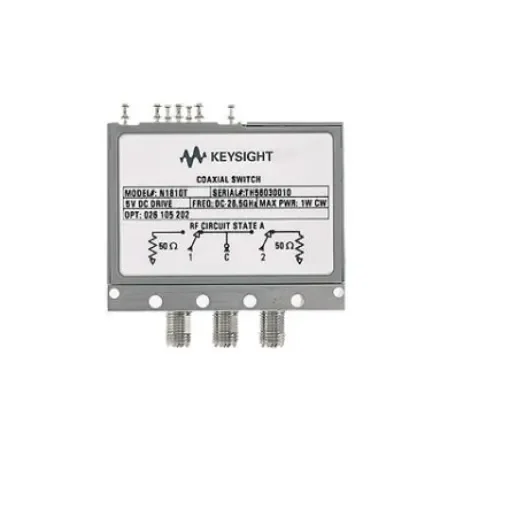

Keysight Technologies RF Switch, SPDT, SMA Female Connector, 26.5GHz Max, >90.0dB Isolation, 15000000ns, 50O Output - N1810TL-020-124-201

Switch Configuration = SPDT
Switching Speed = 15000000ns
Port to Port Isolation = >90.0dB
Maximum Insertion Loss = 0.1dB
Return Loss = 0.03dB
Connector Type = SMA Female
Output Impedance = 50O
Dimensions = 31.79 x 53.41mm
Maximum Frequency = 26.5GHz
Model Number p = N1810TL

The Keysight Technologies N1810TL is a single-pole double-throw switch available in the frequency range from DC to 26.5 GHz. The unused port is terminated 50 O, making it ideal for applications where port matching is required.D subminiature 9 pin connectors or solder lug terminals Standard or TTL or 5 V CMOS compatible drive Optional position indicator
