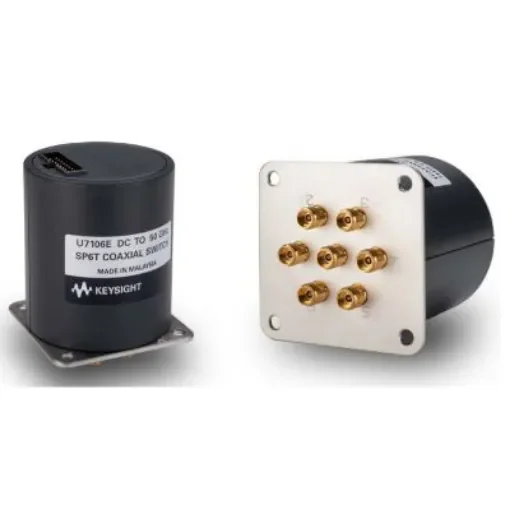

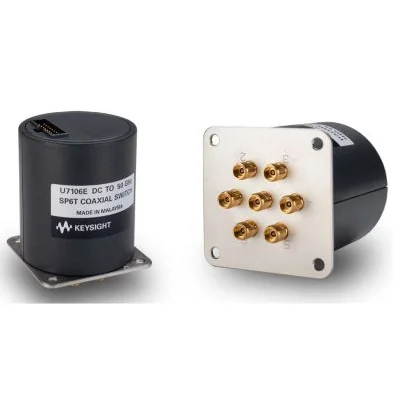

Keysight Technologies RF Switch, 1.85 mm Female Connector, 54GHz Max, 70dB Isolation, 15000000ns - U7106N-200
High-performance RF switch with 54GHz max frequency and 70dB isolation for efficient testing.
Manufacturer part number: U7106N-200
Switching Speed = 15000000ns
Port to Port Isolation = 70dB
Maximum Insertion Loss = 1.59dB
Return Loss = 12.7dB
Connector Type = 1.85 mm Female
Dimensions = 57.15 x 57.15 x 65.46mm
Maximum Frequency = 54GHz
The Keysight Technologies provides the performance, reliability and higher density switch required for multi-DUTs or multi-channel DUTs testing applications. It has DC to 54 GHz operating frequency.Achieve lower cost-per-port test without compromising performance Opto-electronics indicator and current interrupt TTL/5V CMOS compatible
