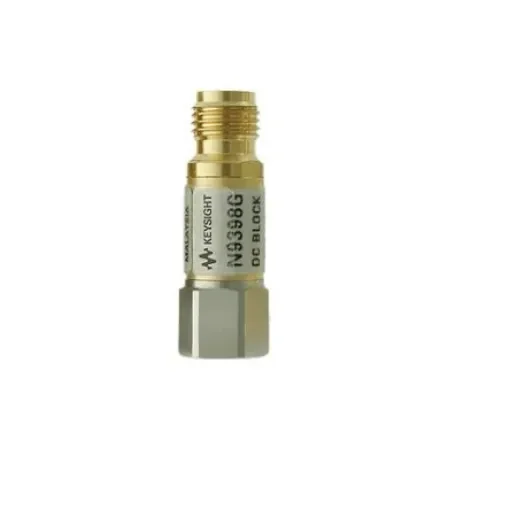

Keysight Technologies N9398G DC Block, 700 kHz min 67GHz max
Achieve superior DC blocking performance with the Keysight N9398G, covering 700 kHz to 67 GHz.
Manufacturer part number: N9398G
Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Maximum DC Working Voltage = 16V
Maximum Insertion Loss = 0.9dB
Maximum Frequency = 67GHz
Minimum Frequency = 700 kHz
The Keysight Technologies N9398G DC block offers a new level of DC blocking with performance specified from 700 kHz to 67 GHz. This DC block features a broad frequency range, excellent return loss, very low insertion loss and excellent temperature stability. prove calibration accuracy with exceptional return loss 15 dB at 67 GHz Maximum available power with 0.9 dB insertion loss 2 choices of DC voltage ratings for a wide range of applications
