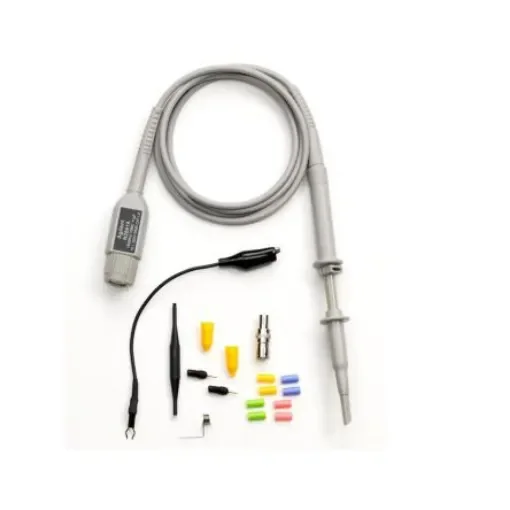

Keysight Technologies N2843A Oscilloscope Probe, Voltage Type, 500MHz, 10:1
High-performance oscilloscope probe with 500MHz bandwidth and 10:1 attenuation for accurate voltage measurements.
Manufacturer part number: N2843A
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
The Keysight N2843A low-cost passive probe provides a 10:1 attenuation and features a high input resistance of 10 MO. The probe can be adjusted for low-frequency compensation and high-frequency compensation.For the best measurements you should compensate your probe to match its characteristics to the oscilloscope. The N2843A is a replacement of the N2890A. The old and new replacements are 100% form, fit, function, and price equivalent to the products they replace.Bandwidth DC to 500 MHz Cable length 1.2 m Rise time 700 ps Attenuation ratio 10:1 Input resistance 10 MO (when terminated into 1 MO) Maximum input 300 V RMS (or >400Vpk) CAT I and CAT II Compatible with Keysight InfiniiVision and Infiniium Series oscilloscopes with 1 MO input Probe ID
