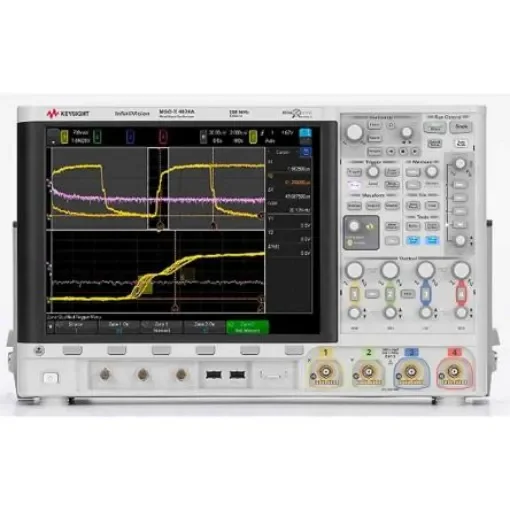

Keysight Technologies MSOX4104A InfiniiVision 4000 X Series, 1GHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital
Experience superior signal detail with the Keysight MSOX4104A, a 1GHz bench oscilloscope featuring 4 analog and 16 digital channels.
Manufacturer part number: MSOX4104A
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Bandwidth = 1GHz
Number of Analogue Channels = 4
Number of Digital Channels = 16
Oscilloscope Type = Bench
Interface = CAN, IIC, LIN, RS232, SPI, UART, USB
Memory Depth = 4Mpts
Sample Rate Random = 5 Gsps
Screen Size = 12.1in
Series = InfiniiVision 4000 X
Record Length = 2 (Digital) M points/ch, 4 (Analogue) M points/ch
Power Source = Mainsmm
4008 X-Series oscilloscopes are engineered for next-generation performance, delivering waveform update rates 20 times faster than the competition to display the most signal detail. A 12 1-inch capacitive touch screen with innovative hardware-based zone touch triggering provides an intuitive interface to get you answers faster. The 4000 X-Series provides maximum investment protection with fully upgradable 5-instruments-in-11 GHz 4 analog plus 16 digital channels Easily view signals on the large 12.1-inch capacitive touch screen Isolate signals in seconds with exclusive Zone touch triggering Capture more data with 4 Mpts memory and standard segmented memory See more signal detail with 1,000,000 wfms/s update rate Expand your measurement capabilities with full upgradability: Add bandwidth, dual-ch 20 MHz arbitrary WaveGen, 3-digit DVM, serial trigger and analysis & mask testing at any time
