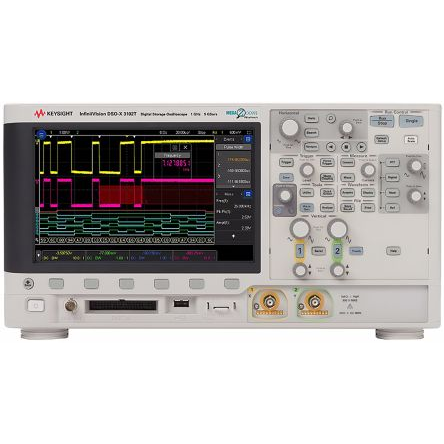

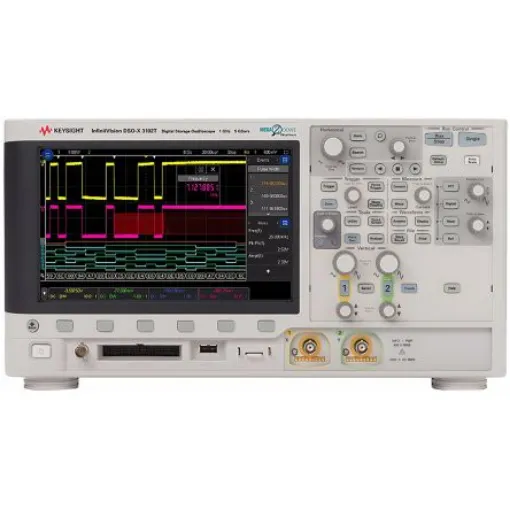

Keysight Technologies MSOX3104T InfiniiVision 3000T X Series, 1GHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital
Discover the Keysight MSOX3104T, a powerful 1GHz oscilloscope with advanced features for precise signal analysis.
Manufacturer part number: MSOX3104T
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Bandwidth = 1GHz
Number of Analogue Channels = 4
Number of Digital Channels = 16
Oscilloscope Type = Bench
Oscilloscope Form = Mixed Signal
Memory Depth = 4Mpts
Screen Size = 8.5in
Series = InfiniiVision 3000T X
Record Length = 2 (Digital) M points/ch, 4 (Analogue) M points/ch
Power Source = MainsV/div
Keysight MSOX3102T / MSOX3104T Mixed Signal Oscilloscopes. The new Infiniivision 3000T X-Series MSO digital storage and mixed signal oscilloscopes give engineers a powerful tool for finding, isolating and resolving the most difficult signal problems. These oscilloscopes offer modern user interfaces including an industry first 8.5 inch capacitive touch screen and new features for isolating problems faster. The 3000T X-Series also offers six instruments in one unit: oscilloscope, digital channels, digital volt meter, protocol analysis, wave-gen waveform generator, and an 8-digit counter and totaliser. Easy to touch targets, adaptable interface and pop-up keyboard to document what you discover. Signal detail is enhanced by an update rate of over 1 million wave forms. The likelihood of capturing and identifying random and infrequent events is higher than ever. The rate also remains constant regardless of which functions you have switched on. Identified anomalies can be isolated with Zone Trigger by simply drawing a box around the signal area of interest on screen. Support for a wide range of popular and emerging serial bus applications including: ARINC 429, CAN/CAN-Symbolic, CAN-FD, FlexRay, I2C, I2S, LIN, MIL-STD 1533, SENT, SPI 4-wire and UART/RS232C. You can also correlate analogue digital and frequency data using the gated FFT for multi-domain problem solving. Features and Benefits. • 1 GHz. • 2 analogue plus 16 digital channels (RS ; 134-6145 134-6145 ); 4 analogue plus 16 digital channels (RS ; 134-6144 134-6144 ). • Easily view and analyze your signals with on the large 8.5-inch capacitive touch screen. • Isolate signals in seconds with exclusive Zone touch triggering. • See more signal detail with the 1000000 wfms/s update rate. • Capture more data with up to 4 Mpts memory. • Expand your measurement capabilities with full upgradability: Add 20 MHz arbitrary waveform generator, 3-digit voltmeter, serial trigger and analysis ; mask testing at any time
