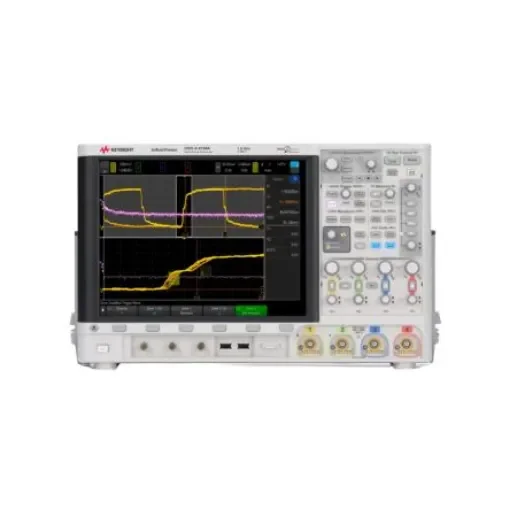

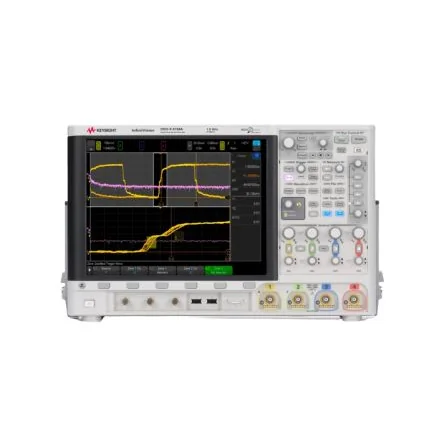

Keysight Technologies DSOX4154A InfiniiVision 4000 X Series, 1.5GHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital
Experience superior signal analysis with the Keysight DSOX4154A, a 1.5GHz bench oscilloscope with 4 analog channels.
Manufacturer part number: DSOX4154A
Bandwidth = 1.5GHz
Number of Analogue Channels = 4
Number of Digital Channels = 16
Oscilloscope Type = Bench
Interface = CAN, IIC, LIN, RS232, SPI, UART, USB
Memory Depth = 4Mpts
Sample Rate Random = 5 Gsps
Screen Size = 12.1in
Series = InfiniiVision 4000 X
Record Length = 2M points
Power Source = Mainsmm
4004 X-Series oscilloscopes are engineered for next-generation performance, delivering waveform update rates 20 times faster than the competition to display the most signal detail. A 12 1-inch capacitive touch screen with innovative hardware-based zone touch triggering provides an intuitive interface to get you answers faster. The 4000 X-Series provides maximum investment protection with fully upgradable 5-instruments-in-11.5 GHz 4 analog channels Easily view signals on the large 12.1-inch capacitive touch screen Isolate signals in seconds with exclusive Zone touch triggering Capture more data with 4 Mpts memory and standard segmented memory See more signal detail with 1,000,000 wfms/s update rate Expand your measurement capabilities with full upgradability: Add digital channels, dual-ch 20 MHz arbitrary WaveGen, 3-digit DVM, serial trigger and analysis & mask testing at any time
