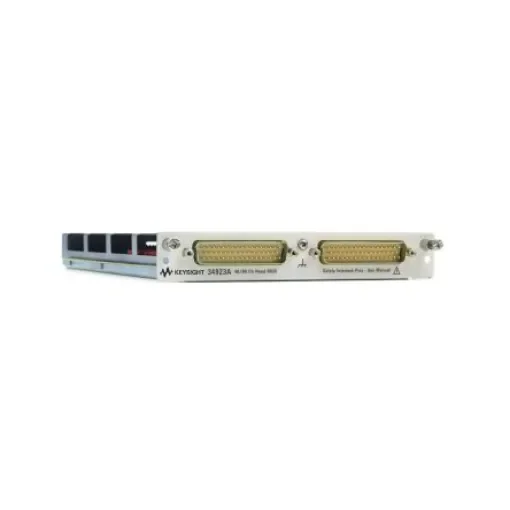

Keysight Technologies Data Acquisition Terminal Block for Use with 34980A Data Acquisition System - 34923A
High-speed terminal block for 34980A systems, enabling efficient data acquisition and monitoring.
Manufacturer part number: 34923A
Accessory Type = Reed Multiplexer
For Use With = 34980A Data Acquisition System
The Keysight 34923A module for the 34980A Multifunction Switch/Measure Unit is a high speed-multiplexer for general purpose scanning. It uses reed relays to achieve scan rates up to 500 channels-per-second. Use this module for high-throughput automated test applications as well as high-speed data logging and monitoring tasks. Current measurements can be accomplished with user supplied shunts. Standard 50-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions. 2- and 4-wire channels may be mixed on the same module, or configure as an 80 1-wire multiplex40 2-wire channels or 80 1-wire channels Mixed 2- or 4-wire configurations High-speed reed relays, with relay counter 500 ch/s scanning +/-150V peak, 0.5A switch, 1.5A carry current
