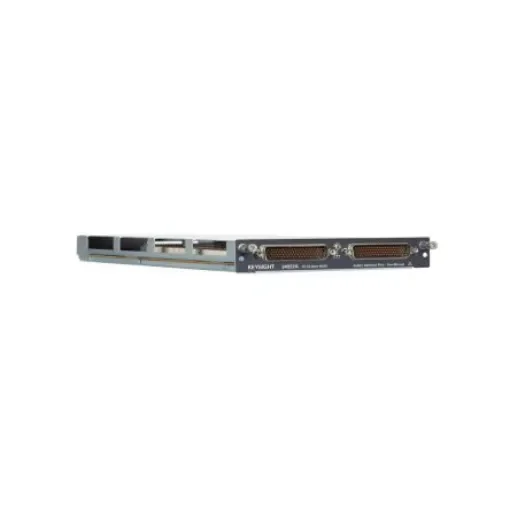

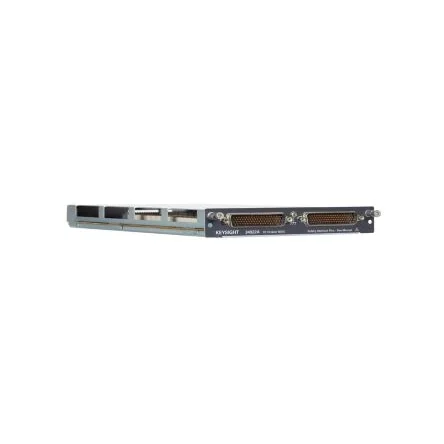

Keysight Technologies Data Acquisition Terminal Block for Use with 34980A Data Acquisition System - 34922A

Accessory Type = Armature Multiplexer
For Use With = 34980A Data Acquisition System

34922A 70-Channel Armature Multiplexer for 34980AThe Keysight 34922A module for the 34980A Multifunction Switch/Measure Unit offers high density multiplexer switching in a compact size. It combines dense, multi-function switching with 100 channel/second scan rates to address a broad spectrum of data acquisition applications. Current measurements can be accomplished with user provided shunt resistors. Standard 78-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions.Features and Benefits- 70 2-wire channels - Mix 2- or 4-wire configurations - 100 ch/s scanning - 300V, 1A switch, 2A carry current - Latching armature relays, with relay counter - Thermal offset 3 µV
