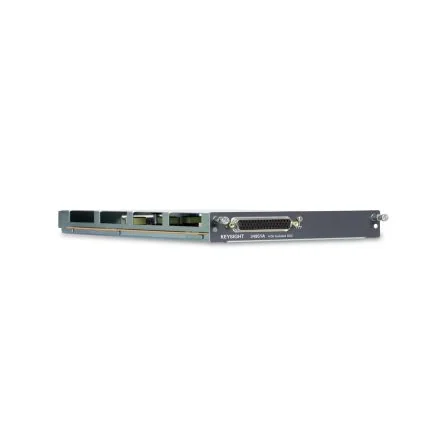

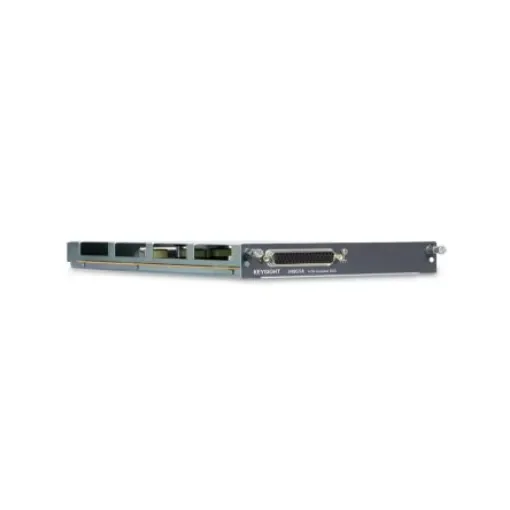

Keysight Technologies Data Acquisition Multifunction Module for Use with 34980A Data Acquisition System - 34951A
High-performance D/A converter module with four isolated analog outputs and 200 kHz update rate.
Manufacturer part number: 34951A
Accessory Type = D/A Converter with Waveform Memory
For Use With = 34980A Data Acquisition System
The Keysight 34951A module for the 34980A Multifunction Switch/Measure Unit has four electronically calibrated analog channels that can output up to +/-16V DC or +/-20mA DC with 16 bits of resolution. Each channel can be updated individually with a 200 kHz update rate. You can use the standard waveforms provided or create your own with over 500,000 points. These points can be dynamically allocated among one or more channels and output as a point-to-point arb. These D/As are useful to source bias voltages to your device under test, to control your analog programmable power supplies, or use the outputs as setpoints for your control systems. Standard 50-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions.Four isolated analog outputs Output up to +/-16V DC or +/-20mA DC 16-bits of resolution 200 kHz update rate Default standard waveforms Onboard memory to create your own waveforms
