Keysight Technologies DAQ973A Data Acquisition, 3 Channel(s), USB 2.0, 800ksps, 22 bit

Number of Input Channels = 3
Sampling Rate = 800ksps
Resolution = 22 bit
Connectivity = USB 2.0
On Board Memory = 1000kB
Power Source = Mains
Input Type = Analogue
Dimensions = 261 x 103.7 x 378mm
Weight = 4.2kg
Height = 88.5mm
Minimum Operating Temperature = 0°C

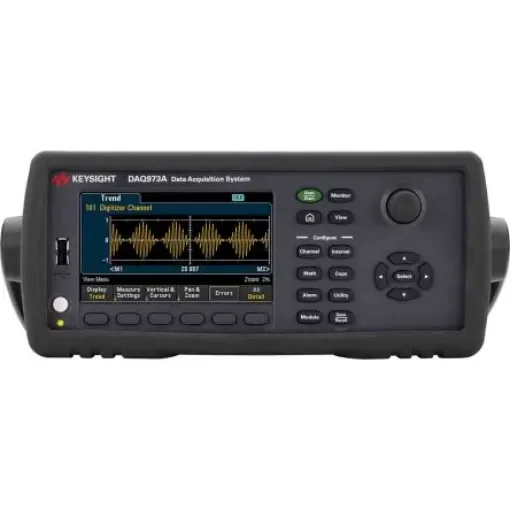

Keysight DAQ973A Data Acquisition System The Keysight DAQ973A is a next-generation data acquisition system with a 3-slot mainframe along with choice of 8 plug-in modules. It interfaces with the DAQ using Keysight BenchVue DAQ software, the intuitive graphical front panel with task oriented self-guiding menus or a web browser. Features and Benefits: 3-slot mainframes with built-in 6 digit DMMBasic 0.003% DCV accuracy9 switch, RF and control plug-in modules, including a new 4-channel simultaneous sampling digitizerUp to 450 channel/s scan rateUp to 120 channels per systemUp to one million points scanning memoryMeasures and converts 12 different input signals:Temperature with thermocouple, RTDs and thermistor; dc/ac volts; 2- and 4-wire resistance;frequency and period; dc/ac current and capacitanceLarge 4.3”; color display for ease of setup and viewing dataLAN and USB for easy connectivity to your PC (DAQ973A comes with additional GPIB)Code compatible with the 34970A/34972AUSB flash drive support to copy/log data in standalone applicationsBenchVue DAQ with enhanced time/frequency domain measurement included
