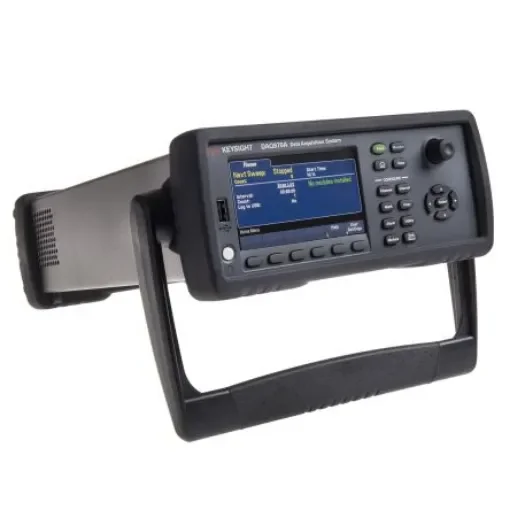

Keysight Technologies DAQ970A Data Acquisition System, 120 Channel(s), LAN, USB, 22 bit

DAQ970A Data Acquisition System Keysight have embedded the measurement engine from their best benchtop DMM in to a 3-slot mainframe. With a scan rate of up to 450 channels/sec, built-in signal conditioning, compact design and modular flexibility this system allows the user to sample more signals quickly and accurately. DAQ-970A has 6 digits (22bits) of resolution, ultra-low noise and 0.004% dcV accuracy. Collecting data is simple with a built in USB memory port which needs no PC connection. USB flash drives can be used to data log and extend the device memory or transfer data more efficiently.Features and Benefits:• Autocalibration - Built in internal module calibration to reduce thermal voltage offset errors • Ability to measure a wide array of current ranges 1 µA DC and 100 µA AC up to 1000 MO • User interface features LCD screen with soft keys - simple measurement display and configuration • SCPI language programming compatible with 34970A/34972A • LAN and USB connectivity • Graphical Web interface built in allowing easy access on any operating system which supports a web browser eliminating need for software • 26bit event counter • Two 16-bit analog outputs • Two 8-bit digital I/O portsBenchVue DAQ software eliminates the need to write or configure software allowing real time analysis and data display.
