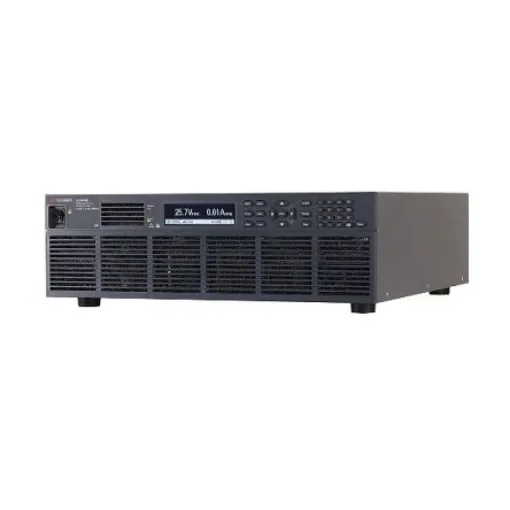

Keysight Technologies AC6800B Series Analogue, Digital Bench Power Supply, 310V, 10A, 1-Output, 2000VA - AC6803B

Keysight Technologies Bench Power Supply AC6803B 2000VA, 1 Output 310V 10A The AC6803B from Keysight Technologies is an AC6800B series basic AC power source. This device is used for voltage, current, power, AC, DC and AC+DC measurements. Its simple user interface allows to easily access, view setup and measurement information directly from the front panel or programmatically. Simply click through the metering options to modify the display to show measurement priorities and increasing levels of details. The basic AC power source is used for simple tasks such as simulating global AC power conditions, testing varying frequency and voltage combinations to simulate real-world conditions and Power factor correction testing and similar AC + DC applications (for example, test your input circuitry to look at ripple voltage). It comes with 3 year warranty.• Single-phase, 2000VA maximum power output, 40-500Hz frequency, 1600W power capacity • AC output mode (low/high): 155Vrms/310Vrms voltage, 20A/10A maximum rms current • DC output mode (low/high): 219V/438V voltage, 16A/8A maximum rms current • Flexible I/O: LAN/LXI core and USB (standard) and GPIB (optional) • Set-up, monitor and operate power sources remotely • 310Vrms or 438VDC isolation to ground • Operating temperature range from 0 to 40°C (non-condensing) • 500VDC, 30Mohm or more insulation resistance, 1.5KV AC for 1 minute withstand voltage • Input terminal: M4 terminal block, output terminal: M4 terminal block • Dimensions (depth includes barrier block safety cover) is 428 x 128 x 581mm, 15Kg weight
