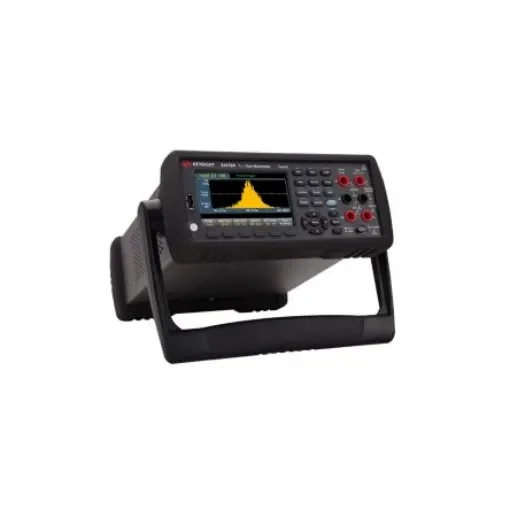

Keysight Technologies 34470A Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max

Multimeter Type = Bench
Model Number p = 34470A
Absolute Maximum DC Current Measurement = 10A dc
Absolute Maximum Capacitance Measurement = 100µF
Maximum Frequency = 300kHz
Safety Category Level = CAT II
Width = 303.2mm

UL, CSA, CE. Test leads with accessories, documentation and IO libraries CDs, USB cable (34470A). Keysight 34470A True RMS Digital Multimeters. Keysight 34470A DMMs offer unprecedented levels of accuracy, speed and resolution. They can measure very low current down to a 1 µA range, enabling their use on very low power devices. The ability to auto-calibrate during the measurement allows the 34470A to maintain a calibrated measurement while the instrument may be going through temperature drift/changes. Graphical capabilities, including trend charts and histograms, facilitate greater user insight gained more quickly. These DMM models provide a data logging mode for easier trend analysis and a digitizing mode for capturing transients. Instrument upgrade options (available separately) includes: 3446MEMU ( ; 867-2284 867-2284 ) which extends memory to 2 million readings. Buyers of upgrades receive an entitlement certificate, register via Keysight website and obtain a software keycode to enable the upgrade. Features and Benefits. Resolutions up to 7.5 digits Reading rates up to 5000 readings/s standard (50,000 with optional upgrade3446DIGU) Memory up to 50,000 readings standard (2 million with optional upgrade 3446MEMU) Voltage ranges from 100 mV to 1000 V Current ranges from 1 µA to 10 A USB and LAN interfaces BenchVue software purchased separately
