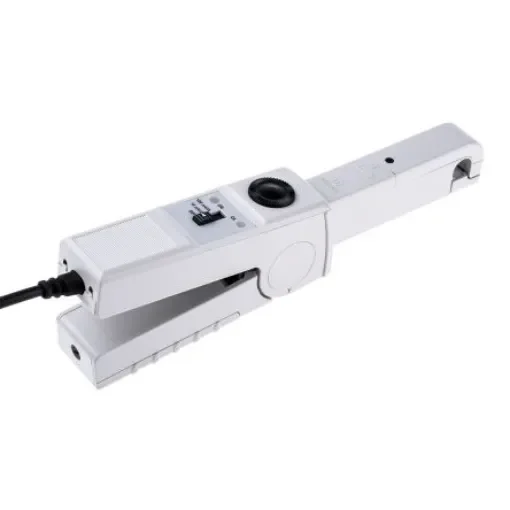

Keysight Technologies 1146B Oscilloscope Probe, Current Type, 100kHz

Keysight Technologies Current Probe & ClampThe Keysight Technologies 2m AC/DC clamp-on current probe is a coaxial cable with an insulated BNC device that provides accurate display and measurement of currents from 100mA to 100Arms, DC to 100kHz, without breaking into the circuit. A battery level indicator and overload indicator help ensure proper readings. The probe connects directly to the scope through a 2m coaxial cable with an insulated BNC. The 1146B is recommended for use with Keysight scopes: MSO/DSO 2000X MSO/DSO 3000X MSO/DSO 4000X MSO/DSO 6000X DSO 5000A (100MHz) DSO 5000A (300 - 500MHz) MSO/DSO 6000A (100MHz) MSO/DSO 6000A (300MHz - 1GHz) MSO/DSO 7000A/B (100MHz - 1GHz). It is ideal for capturing transient current signals such as those found in motor controllers, switching power supplies, inverters, and current amplifiers driving inductive loads.Features and BenefitsMaximum peak current: 100mV/A: 10A DC or peak AC, 10mV/A: 100A DC or peak AC AC current accuracy is 100mV/A (50mV to 10A peak) - 3% of reading greater than or equal to 50mA,10mV/A (500 mA to 40 A peak) - 4% of reading greater than or equal to 50mA,10mV/A (40 A to 100 A peak) - 15% max at 100A Working voltage is 600V maximum 9V alkaline batteryCertificationsCAT II 600V CAT III 300V CAT II CAT III
