Key Instruments FR4500 Series Variable Area Flow Meter for Gas, 14 L/min Min, 140 L/min Max - 2530A4A72BVBN
Precision flow meter for gas with a range of 14 to 140 L/min, ensuring accurate measurements and easy maintenance.
Manufacturer part number: 2530A4A72BVBN
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.

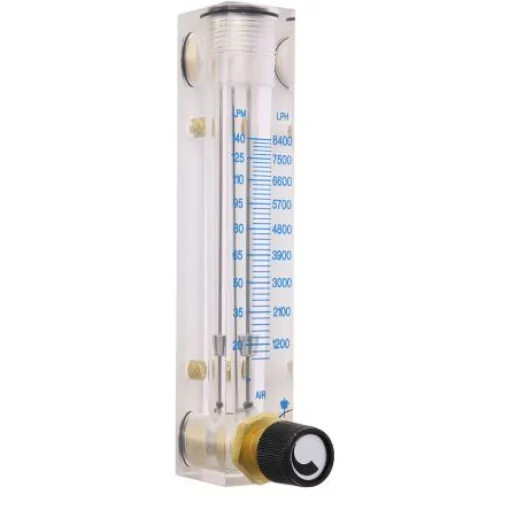

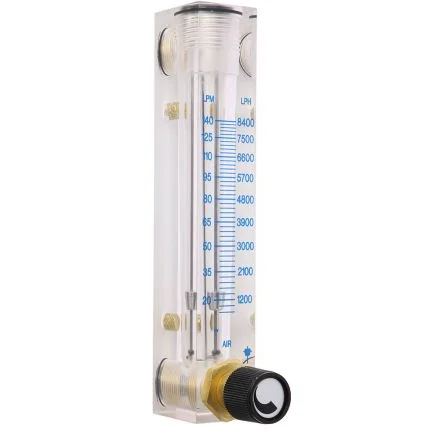

Key Instruments Flow MeterThe Key Instruments FR4500 series variable area flow meter measures the gas flow rate of 14L/min to 140L/min. It is a standard, precision-machined, acrylic, flow meter for liquids or gases. It also has direct reading air and water scales. The FR4500 flow meters can be configured with a control valve on the inlet or no valve at all. The O-rings are provided as Buna-N. Note: Mounting screws are required (available separately).Features and BenefitsPipe diameter range is 1/4 in Connection type is 1/4 NPT female Maximum operating pressure is 6.89bar Maximum operating temperature is 65°C It is use for long term trouble free operation Easy-to-read scales Threaded brass inserts for quick installation Easy disassembly and assembly for maintenance Durable, 1-piece, clear, acrylic construction Stable, easy-to-read float Superior quality Mounting inserts 10-32 UNF x 3/8in It has maximum pressure 100PSIGApplicationsCompatible with most gases and fluids
