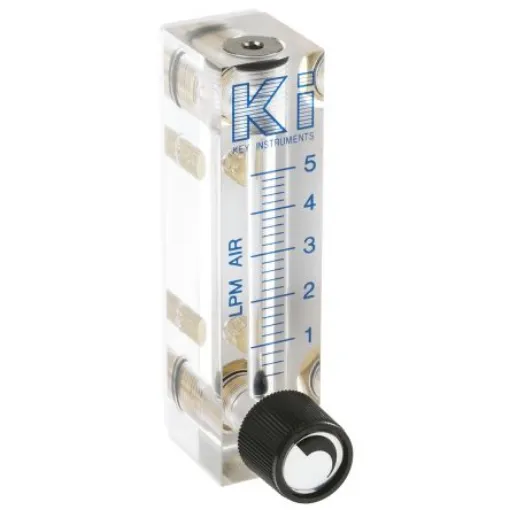

Key Instruments FR2000 Series Variable Area Flow Meter for Gas, 0.4 L/min Min, 5 L/min Max - 25102A14BVBN

Media Monitored = Gas
Device Type = Variable Area
Minimum Flow Rate = 0.4 L/min
Maximum Flow Rate = 5 L/min
Pipe Diameter Range = 1/8 in
Connection Type = 1/8 NPT Female
Maximum Pressure = 6.89bar
Material = Acrylic
Maximum Media Temperature = +65°C
Maximum Operating Temperature = +65°C

Key Instruments Flow MeterThe Key Instruments FR2000 series variable area flow meter measures the gas flow rate of 0.4L/min to 5L/min. This is a standard, precision-machined, acrylic flow meter for liquids or gases. It has direct-reading air or water scales and is available in either English or metric scales. This is a durable and affordable product that provides highly repeatable results. It can be configured with a control valve on the inlet. The fittings and the valve are specified in brass and the O-rings are provided with Buna-N. These precision-machined, 1-piece, acrylic-body blocks can handle demanding projects and mounting panels along with high durability. It is used for many non-corrosive, low-pressure air, water and gas flow applications. Note: Please ensure you have selected the correct gauge for air, gas, or water.Features and BenefitsPipe diameter range is 1/8 in Connection type is 1/8 NPT female Maximum operating pressure is 6.89bar Maximum operating temperature is 65°C Large scales are easy-to-read Valve with positive stop stays in place under pressure Rod guided float for stable measurements Fitting, valve and O-ring options accommodate multiple applications Multiple connection options for easier installation Easy disassembly and assembly for maintenance Durable 1-piece, clear, acrylic constructionApplicationsAir sampling equipment aquaculture Desalinisation equipment Gas analysers Medical systems Photo processing equipment Water treatment and distribution systems Purge
