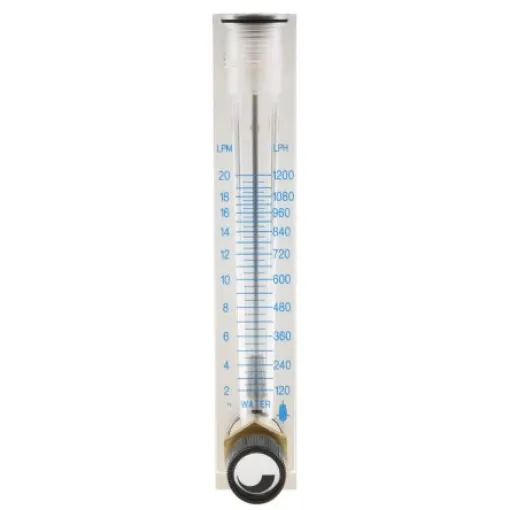

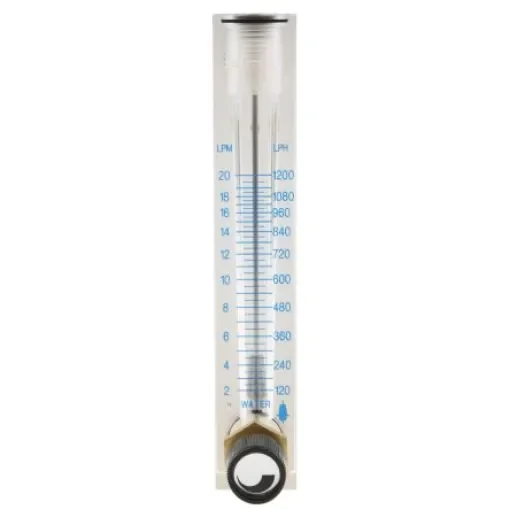

Key Instruments Flo-Rite Series Variable Area Flow Meter for Liquid, 1.5 L/min Min, 20 L/min Max - 2530A4L71BVBN

Key Instruments FlowmeterThe Key Instruments FR4500 series variable area flowmeter measures the liquid flow rate of 1.5L/min to 20L/min. It is a standard, precision-machined, acrylic, flowmeter for liquids or gases. It also has direct reading air and water scales. The FR4500 flowmeters can be configured with a control valve on the inlet or no valve at all. The O-rings are provided as Buna-N. Product application information: Compatible with most gases and fluids. Note: Mounting screws are required (available separately).Features and BenefitsPipe diameter range is 1/4 in Connection type is 1/4 NPT female Maximum operating pressure is 6.89bar Maximum operating temperature is 65°C It is use for long term trouble free operation Easy-to-read scales Threaded brass inserts for quick installation Easy disassembly and assembly for maintenance Durable, 1-piece, clear, acrylic construction Stable, easy-to-read float Superior quality Mounting inserts 10-32 UNF x 3/8in It has maximum pressure 100PSIGApplicationsAir sampling equipment aquaculture Desalinization equipment Gas analysers Medical systems Photo processing equipment Water treatment and distribution systems
