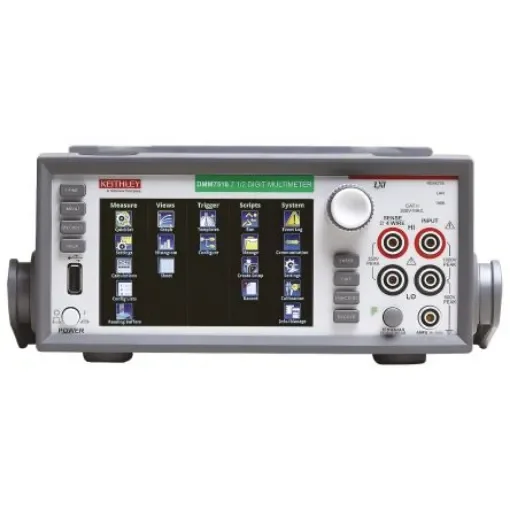

Keithley DMM7510 Bench 7.5 Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 700V ac Max
The Keithley DMM7510 is a high-resolution digital multimeter designed for precise measurements and advanced signal analysis.
Manufacturer part number: DMM7510
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Model Number p = DMM7510
Absolute Maximum Resistance Measurement = 1GO
Absolute Maximum Temperature Measurement = +850°C
DC Current Measurement Resolution = 1µA dc
AC Voltage Measurement Resolution = 0.1µV ac
Capacitance Measurement Resolution = 0.1pF
Best Capacitance Measurement Accuracy = 0.4+0.1 %°C
. Keithley DMM7510 7-digit Graphical Sampling Multimeter. Keithley DMM7510 7 digit precision graphical sampling digital multimeter is a high-resolution multimeter. The DMM7510 combines all the advantages of a precision digital multimeter with a touch screen display, high-speed performance and high resolution digitiser. The whole package provides you with one of the first graphical sampling digital multimeters. This multimeter gives you unprecedented flexibility of signal analysis together with ease in observing, interacting with and exploring measurements using 'pinch and zoom'. The DMM7510 with pA-level sensitivity and 1Msample/s sampling accurately measures ultra-low sleep mode currents and transmit drain currents for wireless devices. Features and Benefits:. 3 to 7 digit resolution 14 PPM basic one-year DCV accuracy 100mV, 1O and 10µA ranges for sensitivity to measure low level signals Accurate low resistance measurements with offset-compensated ohms, four-wire and dry circuit functions Capture and display waveforms or transients with 1MS/s digitizer Large internal memory buffer Auto-calibration feature 5-inch, high resolution touchscreen interface Front panel USB memory port. Additional Features:. Best accuracy, low noise. Digitising rate 1000000 reading/s. Measures current drain in all IoT devices operating states. Capture µA sleep mode currents. Transmit currents up to 1 A combining sensitive and fast current measurements. Measures low signals with high sensitivity. Captures and stores more than 27 million readings. Observe, interact with and explore measurements. Connectivity GPIB / USB (TMC) LAN (LXI). What Is Included?. Test Leads. USB Cable. TSO-Link/Ethernet cable. CD Documentation and qucik start guide plus. Test script builder software. KickStart Startup software. LabVIEW and IVI Drivers
