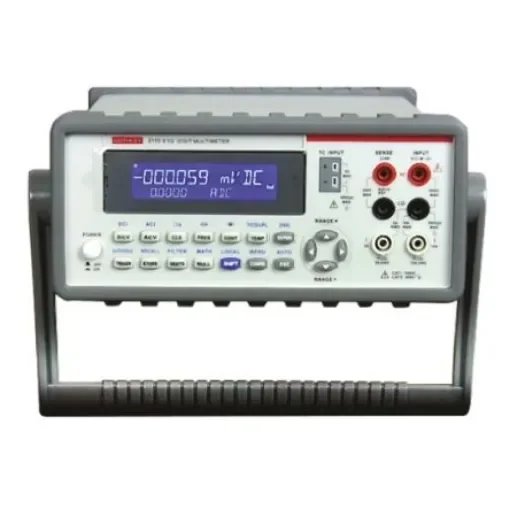

Keithley 2110 Bench Digital Multimeter, 10A ac Max, 10A dc Max, 750V ac Max - 2110-240

Display Type = Digital
Absolute Maximum AC Voltage Measurement = 750V ac
Absolute Maximum Capacitance Measurement = 100µF
AC Current Measurement Resolution = 100µA ac
AC Voltage Measurement Resolution = 10mV ac
Safety Category Level = CAT I, CAT II
Maximum Operating Temperature = +40°C

CE Compliant. Keithley 2110 5-digit Dual-display Digital Multimeter. The Keithley 2110 5-digit dual-display digital multimeter is optimized for a variety of general-purpose system and bench design applications. Compared with other leading 5-digit DMMs, the 2110 offers excellent throughput (up to 10x faster), accuracy (up to 2x better DC voltage accuracy), value and integration flexibility. Measurement capabilities include DC voltage up to 1000V and current up to 10A, AC voltage up to 750V and current up to 10A, 2- and 4-wire resistance up to 100 mega-ohms, temperature, frequency (10Hz–300kHz) and period, and capacitance (1 nanofarad to 100 microfarad ranges). Mathematical functions and diode and continuity test functions are included. Programmable A-D converter and filter settings help optimise the 2110's signal-to-noise ratio to improve measurement accuracy. At the fast 4-digit setting, it takes up to 50,000 readings/second. The instrument's dual display can show the results from two measurements (e.g. DC voltage and temperature) simultaneously, so that users can monitor temperature fluctuations without interrupting other measurements. An intuitive front panel facilitates use of the 2110 by students, without sacrificing measurement performance or flexibility. System features include external triggering and a built-in reading buffer. Why Use The Keithley 2110 Dual Display Multimeter?. Excellent value. Comprehensive capabilities. Excellent measurement accuracy. High speed. Dual-line display. Displays two different measurements at the same time. General purpose. 5 digits deliver up to 200 readings via USB remote interface. 4 digit setting takes up to 50000 readings. GPIB option excellent for production and monitoring applications. Features and Benefits:. 15 Measurement functions including capacitance and thermocouple measurements. Dual-line display. Choice of USB only or USB + GPIB interfaces. Includes PC software utilities for both Microsoft® Word and Excel. Easy to use front panel. Minimizes added equipment costs when building systems. Two measurements shown concurrently, reduced need for additional instruments. Provides greater flexibility in system integration. Supports graphing and data sharing. Ideal for taking quick measurements. Lower cost. What Is Included?. Start up software. USB Cable. Power cable. Safety test leads. Three year standard warranty
