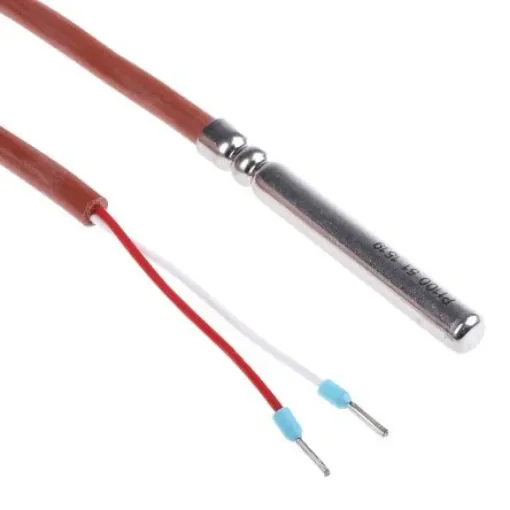

Jumo PT100 RTD Sensor, 6mm Dia, 50mm Long, 2 Wire, Probe, Class B +180°C Max - 90/00389771

Sensor Type = PT100
Probe Length = 50mm
Probe Diameter = 6mm
Minimum Temperature Sensed = -50°C
Maximum Temperature Sensed = +180°C
Termination Type = Cable
Cable Length = 2.5m
Probe Material = Stainless Steel
Process Connection = Probe
Number Of Wires = 2
Accuracy = Class B
Response Time = 10 s (Water) 98 s ( Air)

Push-in RTD Temperature Probe. Push-in RTD temperature probes are mainly used for measuring temperature in liquids and gasses. The application areas, among others, are the air conditioning and refrigeration industry, in the construction of heating systems/furnaces/equipment, and in laboratory technology. Depending on the version, the connection cables are suitable for dry or moist rooms with a temperature range between -50 to +400 °C. The connecting cable transition points are strainrelieved. An anti-kink protection is available as an option. A Pt100 temperature sensing element according to DIN EN 60751, class b in 2-wire circuit is used as a measuring insert by default – versions with Pt500 or Pt1000 are also possible. The connection is also available in 3-wire and 4-wire circuits as an option.
