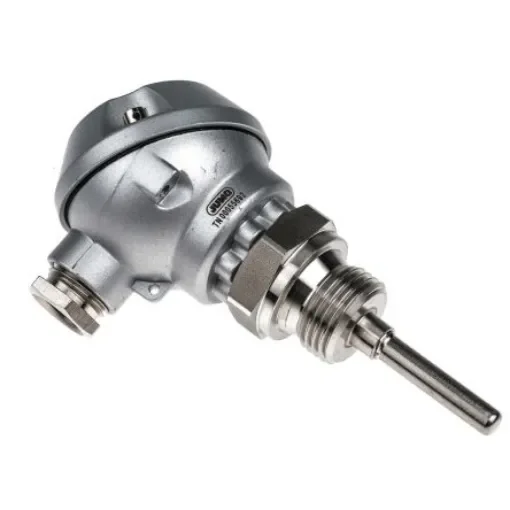

Jumo PT100 RTD Sensor, 6mm Dia, 50mm Long, 2 Wire, G1/2, Class B +400°C Max - 902030/10-402-1003-1-6-50-104/000

Sensor Type = PT100
Probe Length = 50mm
Probe Diameter = 6mm
Minimum Temperature Sensed = -50°C
Maximum Temperature Sensed = +400°C
Termination Type = Connection Head
Probe Material = Stainless Steel
Process Connection = G1/2
Cable Entry Size = M20
Number Of Wires = 2
Accuracy = Class B
Response Time = 14 s

Pt100 resistance thermometer with connection head. Screw-in resistance thermometer with sealable connection head, form J Various installation lengths available Two versions available -400 °C type: with continuous protection tube -200 °C type: with recessed protection tube for air measurement Process connection G1/2 Protection tube: Stainless steel 1. 4571, Ø 7 or 6 mm
