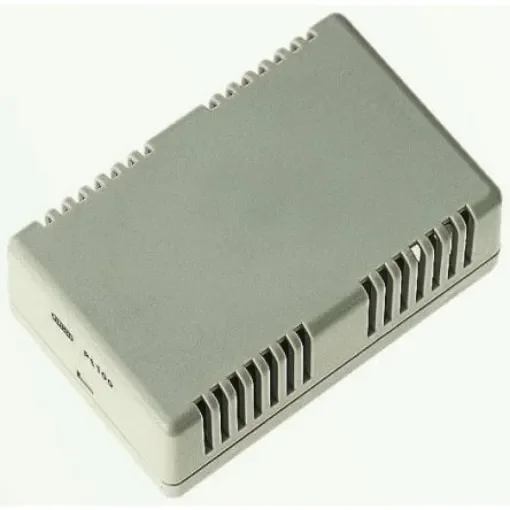

Jumo PT100 RTD Sensor, 3 Wire, Wall, Class B +80°C Max - 902520/10-572-1001-1/000

Sensor Type = PT100
Minimum Temperature Sensed = -30°C
Maximum Temperature Sensed = +80°C
Termination Type = Cable Gland
Process Connection = Wall
Number Of Wires = 3
Accuracy = Class B
Response Time = 10 ms

Room / External Temperature Sensor. For temperatures between -30 and +80 °C For use in climate technology Quick and easy assembly Can be connected in 2, 3 or 4-conductor circuit Protection rating IP20 for room resistance thermometer Protection rating IP54 for room / external thermometer Dimensions (IP20): 54 x 84 x 31 (IP54): 75 x 75 x 65
