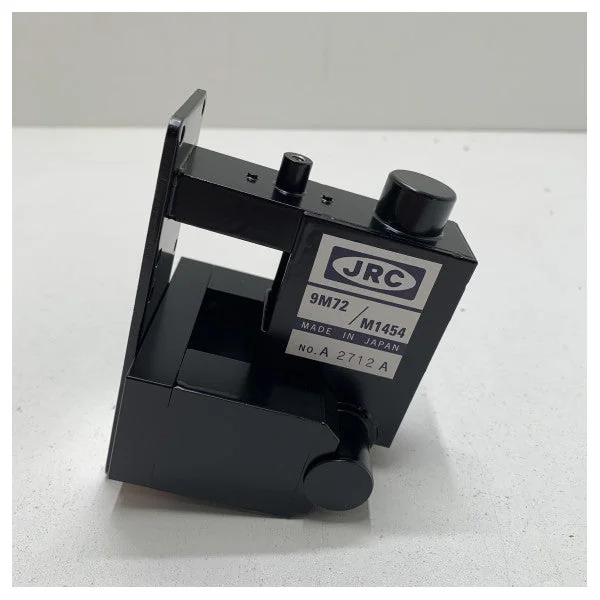

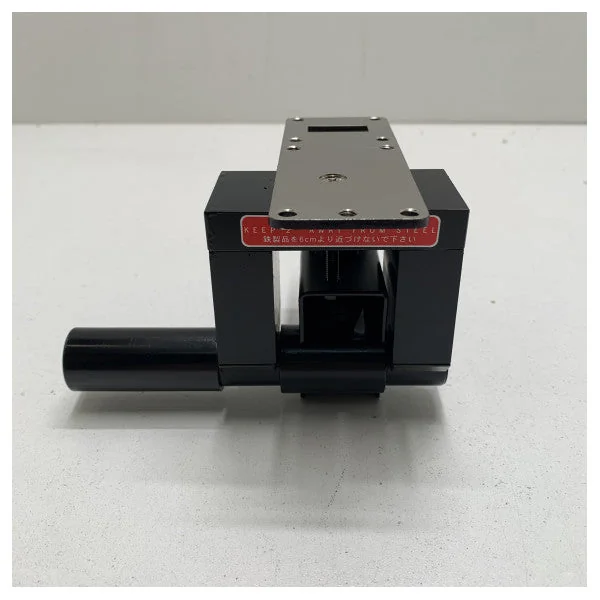

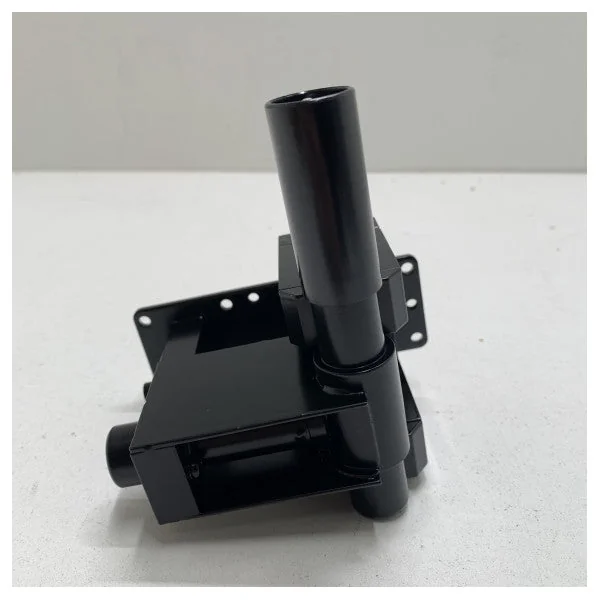

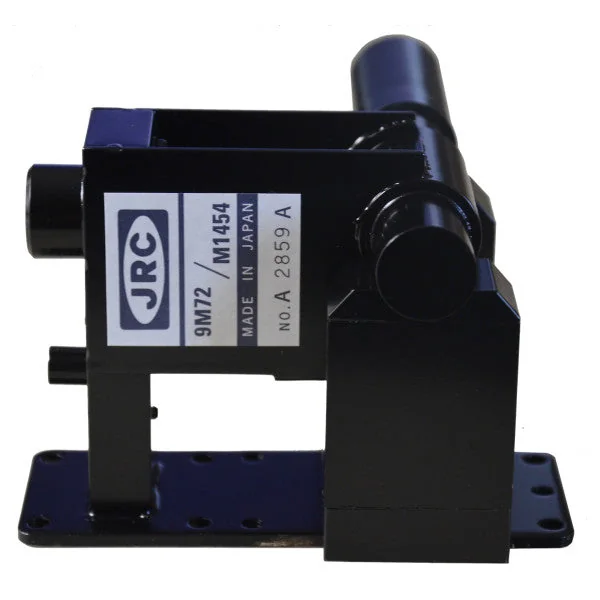

JRC X-band 25 kW radar magnetron - M1454/9M72
Product description:
The JRC X-band 25 kW radar magnetron M1454/9M72 is a powerful and reliable magnetron designed for use in maritime and aviation navigation radar. The magnetron has a frequency range of 9380 to 9440 MHz and a peak power of 25 kW.
Features:
- Frequency range: 9380 - 9440 MHz
- Peak power: 25 kW
- Pulse repetition frequency (PRF): 500 Hz - 4000 Hz
- Pulse width: 0.1 µs - 2 µs
- Duty cycle: 1% - 10%
- Air-cooled
- Compact and lightweight
- High reliability
Properties:
- The magnetron is designed for a long lifespan and reliable operation in demanding environments.
- The magnetron is air-cooled and does not require external coolant.
- The magnetron is compact and lightweight, making it easy to install and maintain.
- The magnetron is equipped with several safety features to ensure user safety.
Specifications:
- Type: M1454/9M72
- Frequency: 9380 - 9440 MHz
- Peak power: 25 kW
- PRF: 500 Hz - 4000 Hz
- Pulse width: 0.1 µs - 2 µs
- Duty cycle: 1% - 10%
- Cooling: Air-cooled
- Dimensions: 400 mm x 250 mm x 150 mm
- Weight: 15 kg
