The JRC NCM-2150 MF/HF Radio Communication Control Unit is an essential component for your maritime communication system, designed for use with the JSS-2150, JSS-2250, and JSS-2500 MF/HF radio sets. This control unit offers a user-friendly interface and is crucial for the Global Maritime Distress and Safety System (GMDSS) communication, ensuring you have fast and efficient communication at sea, including emergency calls. It is the perfect solution for replacing a damaged or defective control unit or for creating a second control station on board.
Features and Functionality
- Clear High Visibility Display: The unit features a 3.8-inch (320 x 240 pixels) LED-backlit LCD screen with high visibility. This display can be adjusted as desired with 10 dimming settings and 11 contrast levels, ensuring optimal readability under all lighting conditions on the bridge.

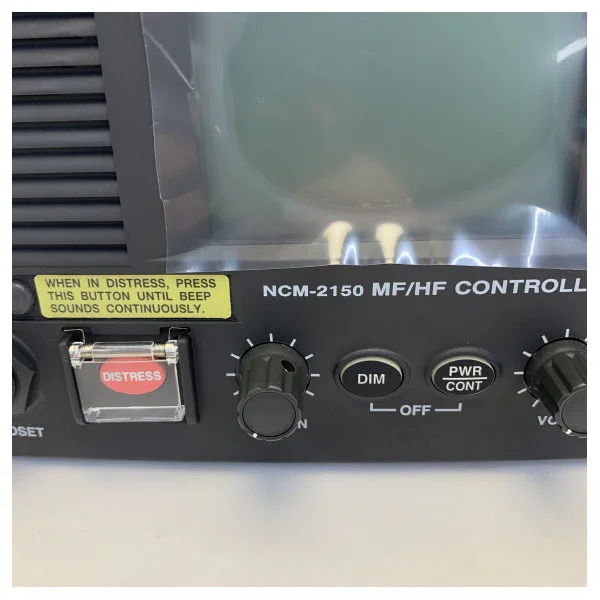

- Integrated DSC Function: Standard equipped with Digital Selective Calling (DSC), including a built-in 6-channel DSC watch receiver (Class A). This enables fast and efficient digital selective calls for distress, urgency, safety, and routine communication. The prominent emergency button is protected against accidental activation.

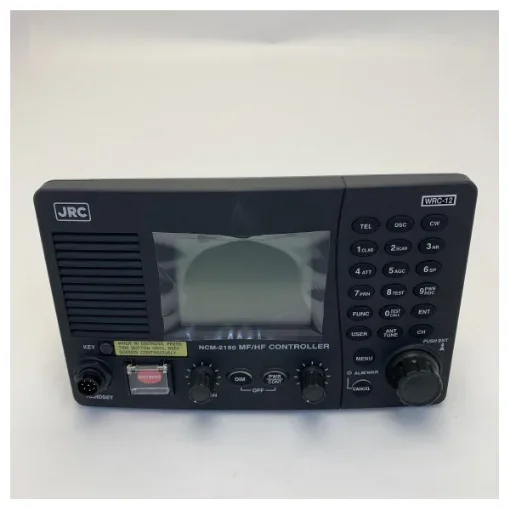

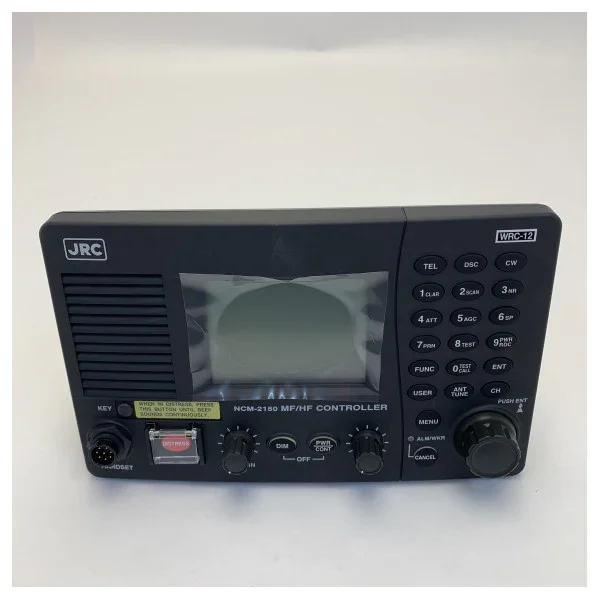

- Easy Operation: Thanks to the streamlined control with a JOG dial and a backlit, responsive keyboard, precise operation is simple even in dark conditions. The uniform keyboard layout is similar to JRC's VHF radiotelephones.
- Digital Audio: Features an advanced digital audio amplifier and an integrated speaker (Audio output speaker: 5W at 8?), providing loud and clear reception sound. The unit also has a Microphone input of -54 dBm and a handset audio output of 1mW or more at 150?.
- Flexible Configuration: The NCM-2150 is designed as a compact black box control unit for flexible installation on your ship.
- Interface Type: Supports the IEC61162-1 interface for connection to, for example, GPS and AME/RMS systems.
Technical Specifications
The JRC NCM-2150 control unit is part of the high-quality JRC MF/HF communication system, known for its reliability and performance.
- Model: NCM-2150
- Display: 3.8-inch LED Backlit (320 x 240 pixels)
- Interfaces: IEC61162-1 (for GPS, AME, RMS, etc.)
- DSC: Built-in Class A 6-channel DSC watch receiver
- Control: JOG dial, Backlit keyboard
- Receiving System: Dual superheterodyne
- Power Consumption (Unit): The controller operates in conjunction with the transceiver, with the total power consumption of the system depending on the transmission power version (for example: DC Consumption TX ? 30A, RX ? 5A for the 150W version).
- Power Supply (System): 21.6 - 31.2V DC (optional AC power available for the entire system)
- Antenna Impedance (System): 50?
- Weight Unit: Approximately 1.3 kg

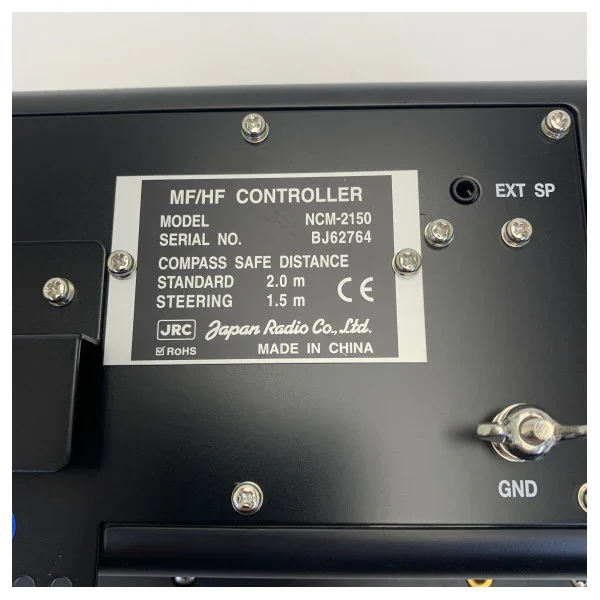

- Safe Compass Distance: 1.9 m to 2.0 m
Optimize communication and safety on board with this robust and functional JRC NCM-2150 control unit.
