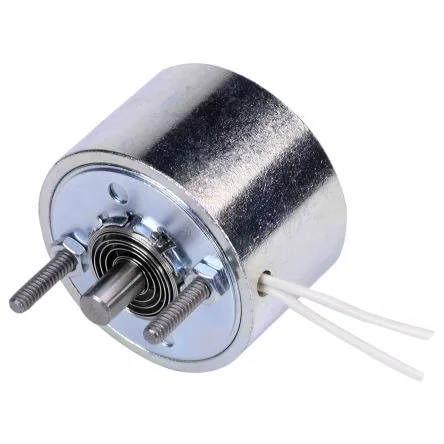

Johnson Electric Rotary Solenoid, 30.2 mm Diameter, 25%, 40W, 27.8 V dc - 195190-032

Manufacturer: Johnson Electric
High-speed rotary solenoid with 40W power and 30.2mm diameter for precise control.
Manufacturer part number: 195190-032
€440.06
i h
Ships to: France, Monaco
Action = Rotary
Duty Cycle = 25%
Diameter = 30.2 mm
Weight = 85g
Closed Power Continuous = 40W
Supply Voltage = 27.8 V dc
Coil Resistance = 19.26O

Johnson Electric’s BTA actuator platform offers high speed controllability in rotary stroke applications. The BTA has a single phase coil with three stator poles and matching rotor pole. When the coil is energized, the poles align along the flux path. The three pole design allows a stroke of up to 45°. Since BTA technology does not require full stroke actuation, stops can be used to attain maximum life as well as optimum stroke / torque capacity. Using simple pulse width modulation to control coil current, the BTA allows open or closed loop velocity and maximum position control.Controllable velocity and position Quiet, shock-free operation 100+ million cycle life No axial stroke Adaptable to closed loop operation Completely enclosed construction Excellent unit-to-unit performance consistency Low power consumption
