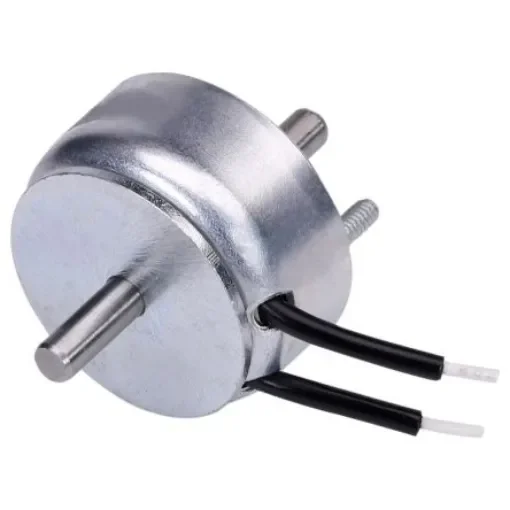

Johnson Electric Linear Solenoid, 26 V dc, 24N - 123421-036
Compact linear solenoid with 24N holding force, perfect for reliable actuation in tight spaces.
Manufacturer part number: 123421-036
Power Consumption = 5 W
Supply Voltage = 26 V dc
Holding Force = 24N
Plunger Diameter = 3.96mm
Product Height = 13.46mm
Product Width = 25.4 Dia.mm
Wire Size = 36AWG
Johnson Electric’s Low Profile Linear DC Solenoids offer extremely compact design which optimizes the magnetic flux path for maximum force versus stroke characteristics. The construction of the plunger assembly provides an auxiliary flux path which permits a significant increase in force. The reliability and high performance of the low profile design make it an ideal choice for applications in which consistent, reliable operation is critical. Long life operation with very high force in a small package make the Low Profile Linear DC Solenoid technology idea for a variety of applications including pumps, packaging equipment, and instrumentation & testing equipment.Linear actuation Space-saving, low-profile configuration Ideal for high force, short stroke applications Forces to 845 N Stroke lengths to 18 mm
