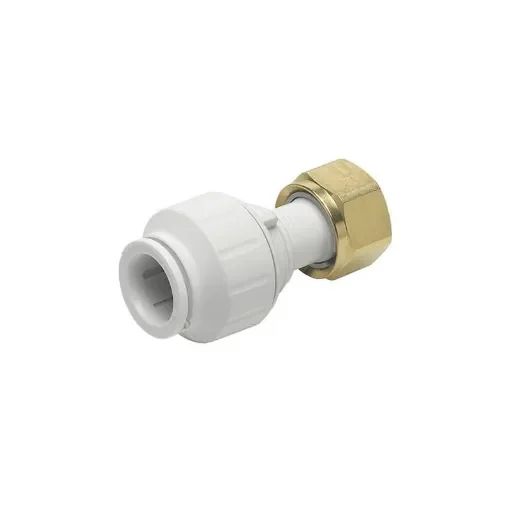

The John Guest Female Coupler 15mm x 1/2" TC is a push-fit fitting designed for connecting plastic or copper pipes to male-threaded fixtures or appliances. Ideal for applications such as taps and toilets, this coupler offers a quick and secure connection without the need for tools, soldering, or adhesives.
- Instant Push-Fit Connection: Allows for quick and easy installation without the need for tools.
- Grip & Seal Collet: Equipped with stainless steel teeth and an O-ring seal to ensure a reliable, leak-proof connection.
- Flame-Free Installation: Eliminates the need for hot works, reducing installation time by up to 40% compared to traditional methods.
- Compatibility: Suitable for connecting to Speedfit PEX and polybutylene plastic pipes (inserts required) and copper pipes.
- Versatility: Compatible with hot and cold water systems and central heating applications.
Technical Specifications:
- Size: 15mm x 1/2"
- Material: Engineered plastic
- Working Pressure and Temperature:
- Max 160 psi at 73°F
- Max 100 psi at 180°F
- Max 80 psi at 200°F
- Standards Met: B.S.I. to BS EN ISO9001, NSF-14, NSF-61, ASTM F 877, CSA 137.5, ASSE 1061
- Warranty: 25 years
Materials:
- Body: Engineered plastic
- Collet: Stainless steel teeth
- O-Ring Seal: EPDM rubber
Dimensions:
- Product Diameter: 30mm
- Product Height: 180mm
- Product Length: 150mm
Compatibility Information:
- Plastic Pipes: Compatible with Speedfit PEX and polybutylene pipes; requires the corresponding manufacturer's insert.
- Copper Pipes: Directly compatible without the need for inserts.
Other Relevant Details:
- Installation: Designed for quick and easy installation without the need for tools, soldering, or adhesives.
- Disconnection: Can be easily disconnected without damage to the tubing.
- Flame-Free Installation: Eliminates the need for hot works, reducing installation time by up to 40% compared to traditional methods.
