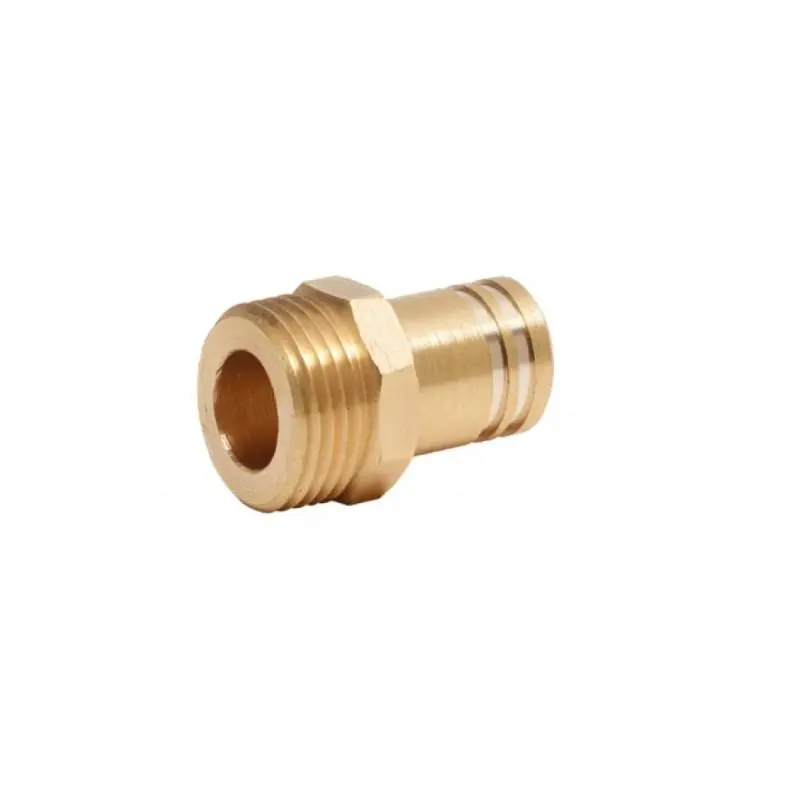

The John Guest Brass Male Stem Adapter 15mm x 1/2" BSPT is a high-quality fitting designed to convert a push-fit connection to a male BSPT thread. This adapter is ideal for applications requiring a secure and reliable connection between John Guest push-fit systems and BSPT threaded components.
- Instant Push-Fit Connection: Allows for quick and easy installation without the need for tools, soldering, glue, or clamps.
- Flame-Free Installation: Eliminates the need for hot works, providing a safer and more convenient installation process.
- Secure and Leak-Proof: Utilizes a collet with stainless steel teeth and an O-Ring to provide a permanent, leak-proof seal.
- Versatile Compatibility: Suitable for use with John Guest Speedfit PEX, polybutylene plastic pipe (with inserts), and copper pipe.
- Suitable for Hot and Cold Water Systems: Ideal for both hot and cold water applications, as well as central heating systems.
Technical Specifications:
- Material: Brass body with nitrile O-Ring, polyketone (unfilled) white collet, and stainless steel collet teeth.
- Pipe Size: 15mm outside diameter (OD) x 1/2" BSPT thread.
- Working Temperature: Suitable for cold water (20°C), central heating (up to 82°C), and hot water systems (up to 95°C).
- Maximum Working Pressure: Up to 12 bar, depending on the size.
- Guarantee: 50-year guarantee when used with John Guest Speedfit Layflat PB and PEX Barrier Pipes.
Dimensions:
- Length (A): 35.6 mm
- Width (BSPT Thread): 28.1 mm
- Height (C): 23.6 mm
- Additional Dimensions: Please refer to the technical drawing for complete measurements.
Compatibility Information:
This adapter is compatible with John Guest Speedfit PEX, polybutylene plastic pipe (with inserts), and copper pipe. It is suitable for both hot and cold water applications, as well as central heating systems.
